ZWO-AM5

Regular price$3,144.00
/
(Including VAT)

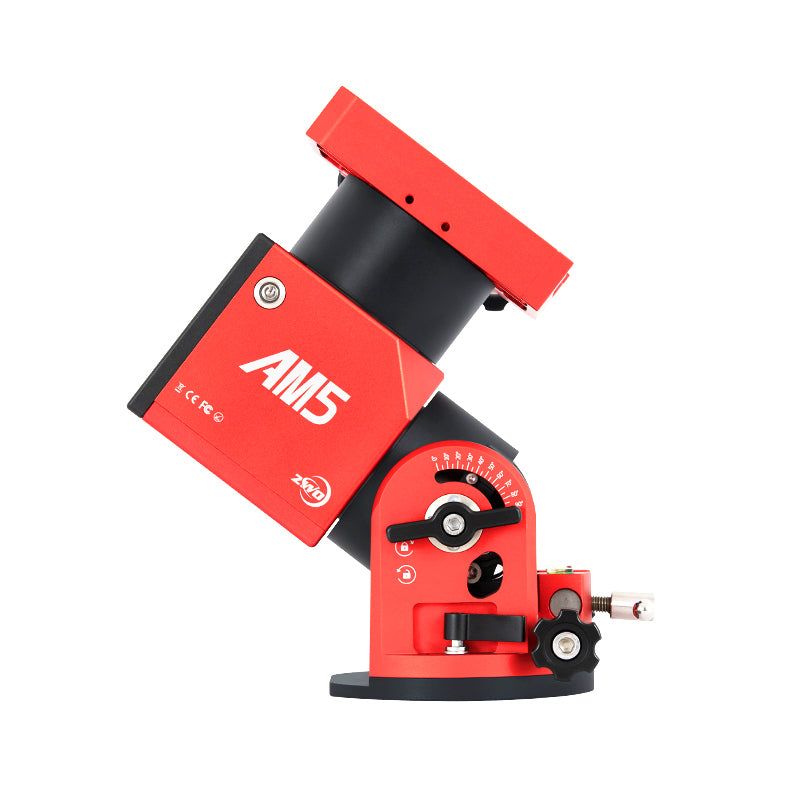

The ZWO AM5 Harmonic mount is the perfect travel mount for Astrophotographers looking for a mount thats not only easy to transport to remote locations but also has a high load capacity capable of carrying larger OTA's and other equipment with ease - Introducing the AM5 Harmonic Mount.

The AM5 Harmonic Mount offers extremely accurate guiding thanks to its clever design and strain wave gearing system. This results in guiding accuracy as low as 0.5 arc seconds and extremely smooth gearing with low periodic error.

The AM5 can also be controlled wirelessly with the ASIAIR and has a built in brake design in the event of power failure to prevent your telescope from falling or getting damaged.

Spec:

  • Operating mode: Altazimuth or equatorial
  • Gear: Harmonic Drive
  • Periodic error: less than +/- 20" - passing time 432 seconds
  • RA Motor: Stepper motor NEMA42 - Harmonic Drive gear - reduction ratio 1/100
  • DEK Motor: Stepper motor NEMA35 - Harmonic Drive gear - reduction ratio 1/100
  • Maximum load capacity: 13 kg without counterweights - 20 kg with counterweights
  • Weight of the mount head: 5.5 kg
  • Operating range: 0° to 90° north / south latitude
  • Telescope mount: Losmandy and Vixen style quick coupling
  • Connection for counterweight rod: M12 female thread
  • Connection on the tripod sinde: 3/8" photo tripod thread
  • Maximum adjustment speed: 6° per second
  • Correction speeds: 0.5x, 1x, 2x, 4x, 8x, 20x, 60x, 720x and 1440x
  • Power supply: 12 V - max 1.5 A (with GoTo)
  • Autoguiding: ST4 port

Whats included:

  1. AM5 mount head
  2. Hand controller and cable

Important Note:

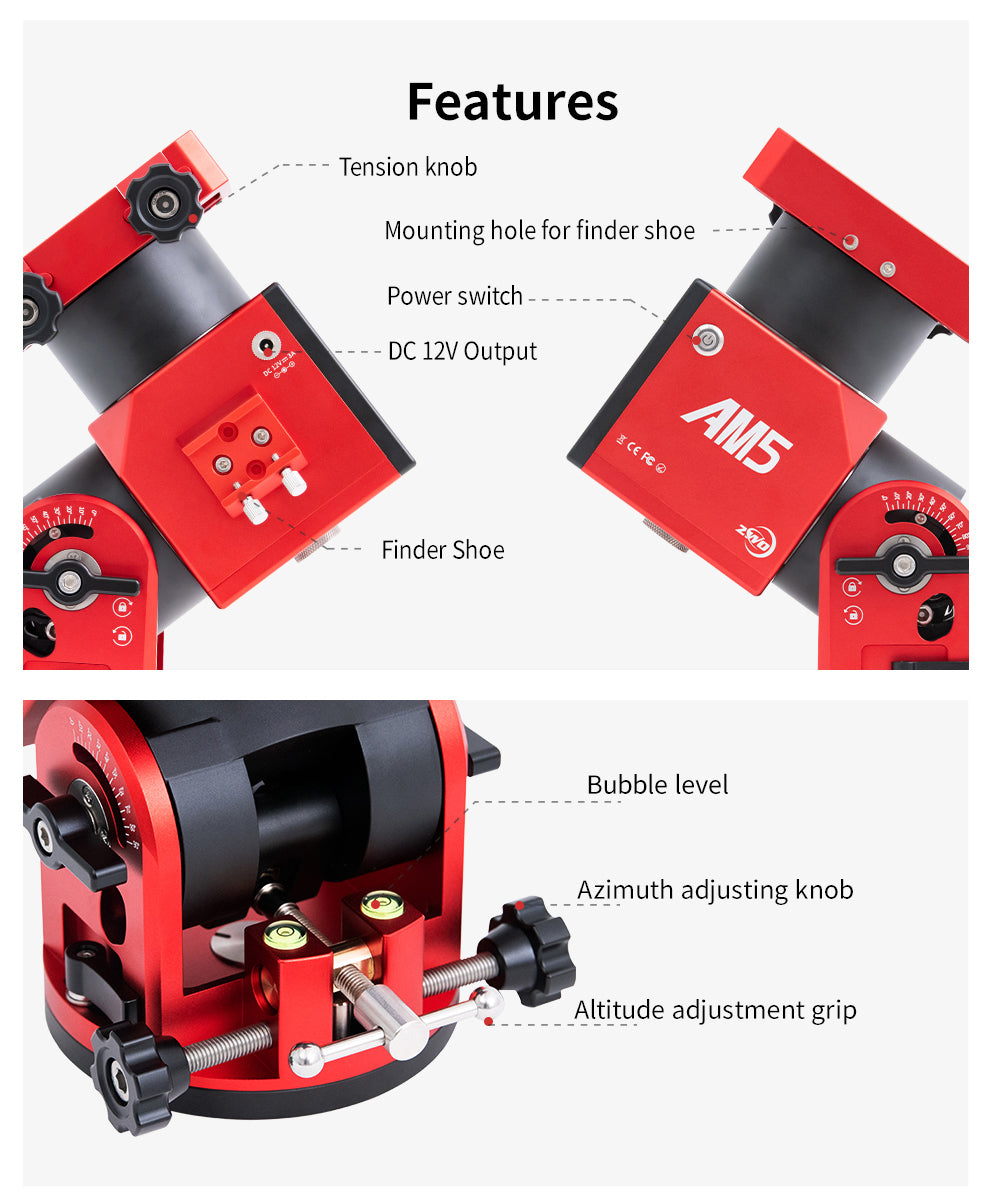

There is an ASIAIR finder shoe attached on to the side of the AM5 which is meant for attaching a polar finder scope. This finder shoe is not suitable for mounting an ASIAIR as both the cables and the antenna of the ASIAIR can be crushed during movement.

If you want to attach this finder shoe to a different location on the mount which is more suitable, such as on the side of the Losmandy / Vixen dovetail saddle plate, then make sure not to over tighten the Hex screws fully into the side panel or you will damage the insert threads. Keep the length of the inner threads between 3-5 mm. Alternatively, you can use M4x3.5mm or M4x4mm screws instead, which are available from ZWO, but also from any hardware store.
