ASI2600MM-P

Regular price€3.299,00
/
(Including VAT)

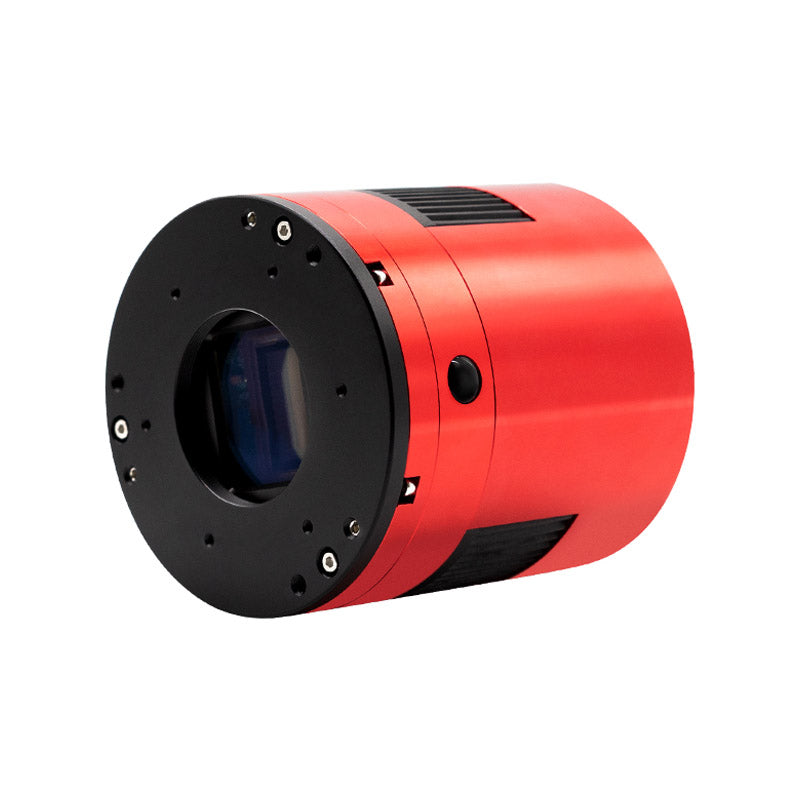

        The ASI 2600 MM Pro is a powerful mono astro camera using with a sensor using APS-C format with an extremely high sensitivity and 16 bit data depth. This means that even with longer exposure times, the stars no longer burn out and you get a much better dynamic range in your images.

        One of the outstanding features of the ASI 2600MM Pro however is the sensational light sensitivity and the QE of 91%. Thanks to the back illumination technology and the very low amplifier glow, this camera is very well suited for all astronomical applications - Particularly for deep sky astrophotography.

        The camera has a 26MP sensor with a small pixel size of 3.76um, yet it accommodates an impressively large well depth of 50 ke-. As one of the few CMOS astronomy cameras with 16-bit ADC on the market, ASI2600MM Pro was developed with the optimal characteristics for astrophotography in mind. This 16bit ADC is not a CCD 16bit ADC, it can really achieve a dynamic range output of 14 stop, which will significantly improve the image sharpness and contrast, and also create smoother and more natural colour transitions.

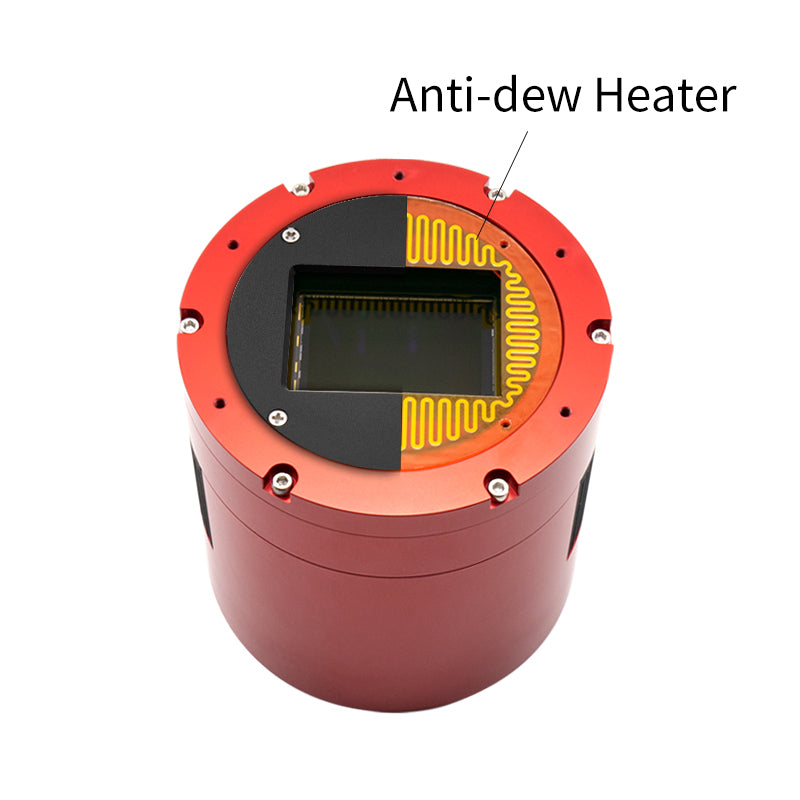

        The ASI2600MM Pro also comes with the polyamide heating element that can avoid any condensation problems on the camera sensor. The anti-dew heater, heats up the protective screen slightly to avoid condensation problems. The power of the anti-dew heater is about 5 W. It can be switched on and off in the software to save electricity.

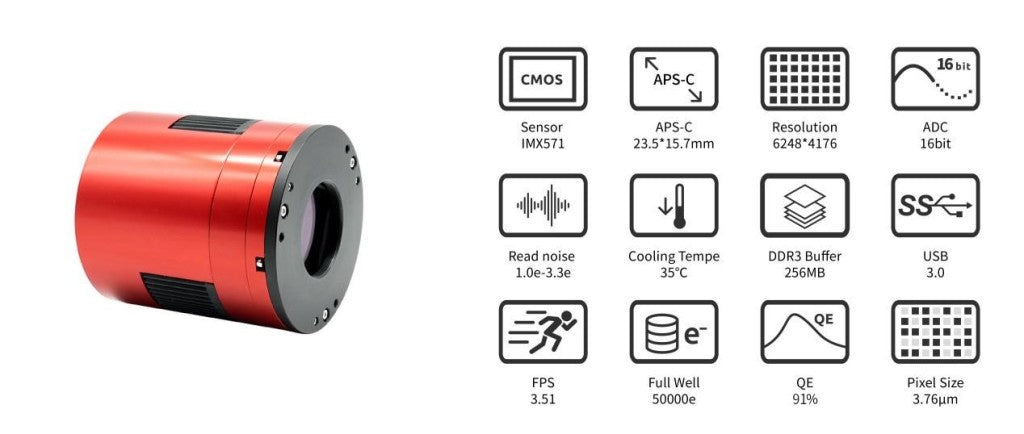

        Camera Spec:

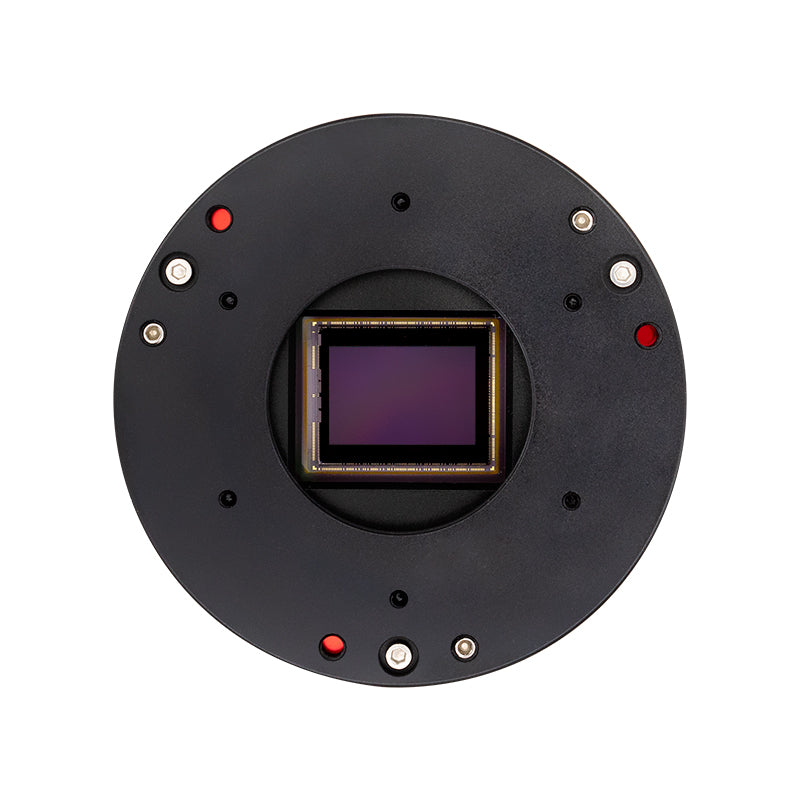

        • Sensor: SONY IMX571 CMOS
        • Diagonal: 28.3mm
        • Image area: 23.5 x 15.7mm
        • Resolution: 26 Mega Pixel 6248 x 4176
        • Pixel Size: 3.76μm
        • Shutter: Rolling shutter
        • Exposure Range: 32μs-2000s
        • ROI: Supported

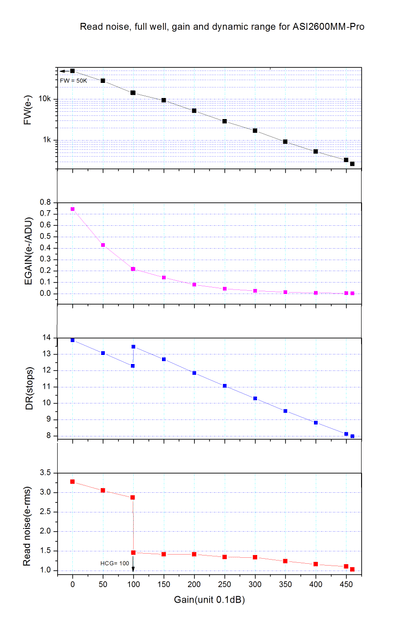

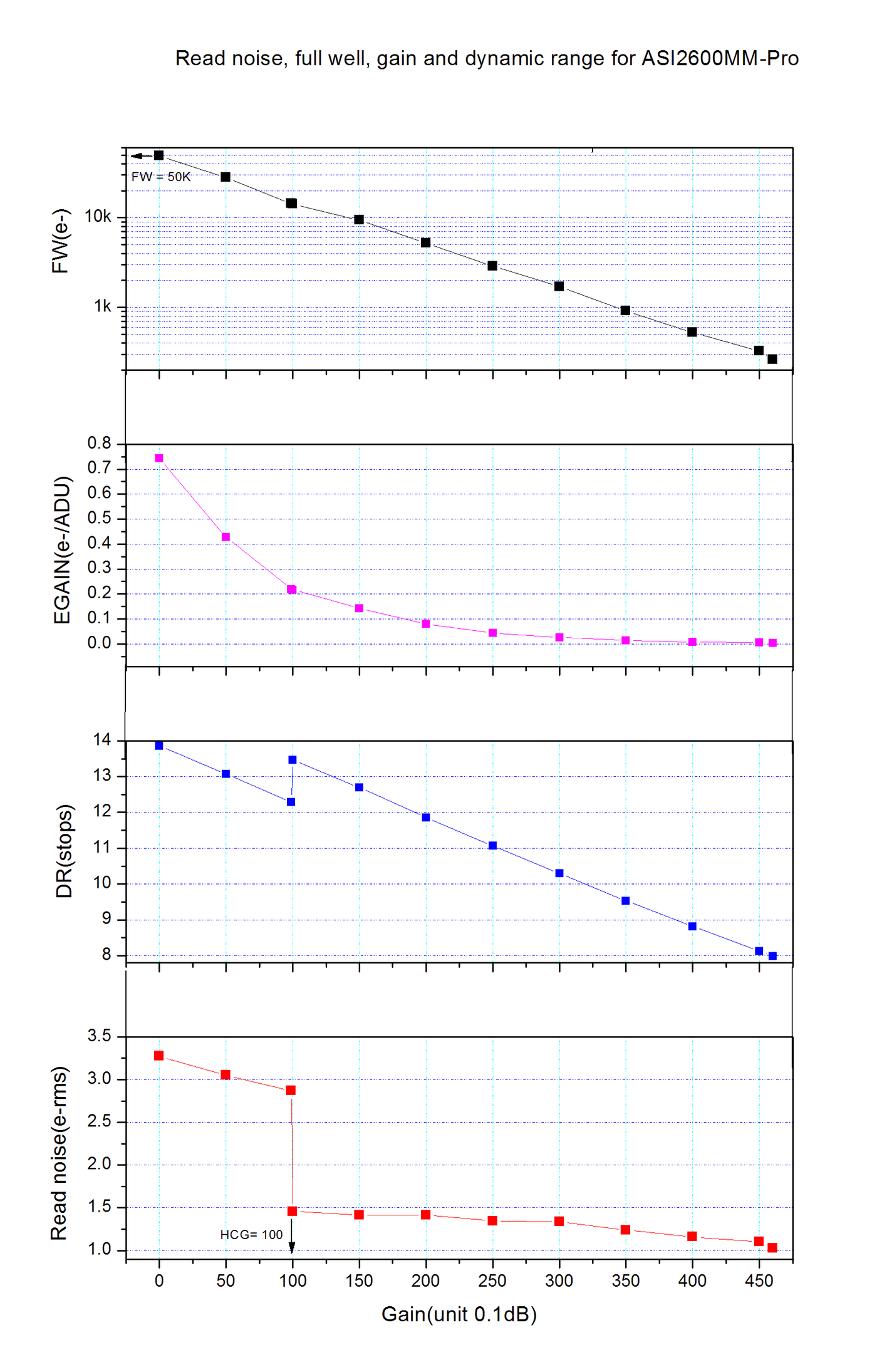

        • Read Noise: 1.0-3.3e

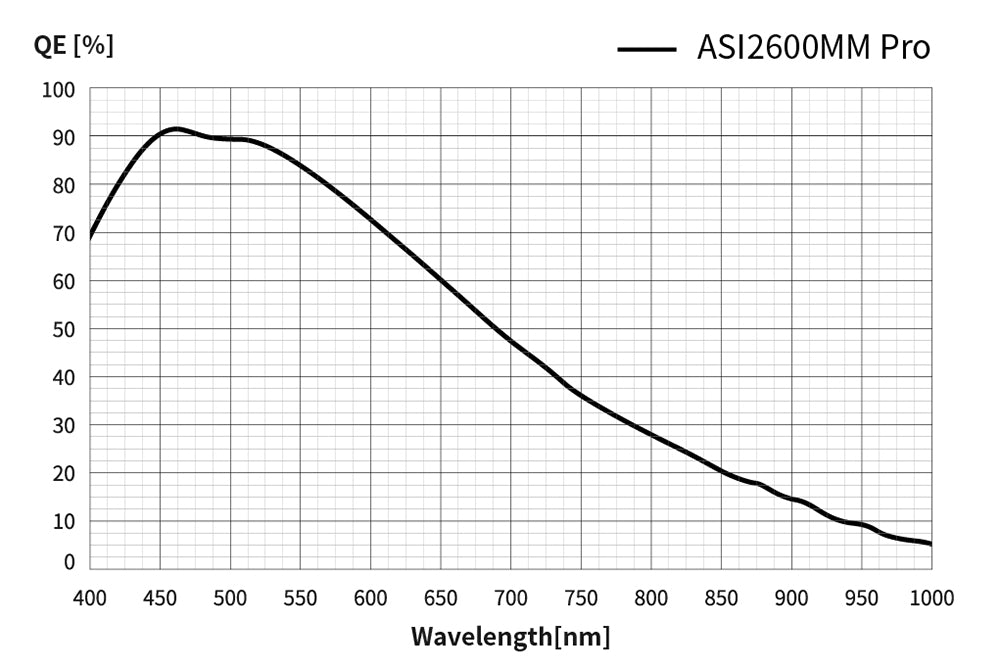

        • QE peak: 91%
        • Full well: 50000e
        • ADC:16bit
        • DDRIII Buffer: 256MB
        • Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
        • Interface: USB3.0/USB2.0
        • Interface: USB3.0/USB2.0

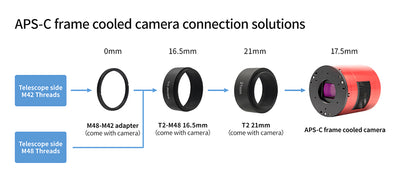

        • Adaptor: M42X0.75
        • Protect window: D60-2 AR

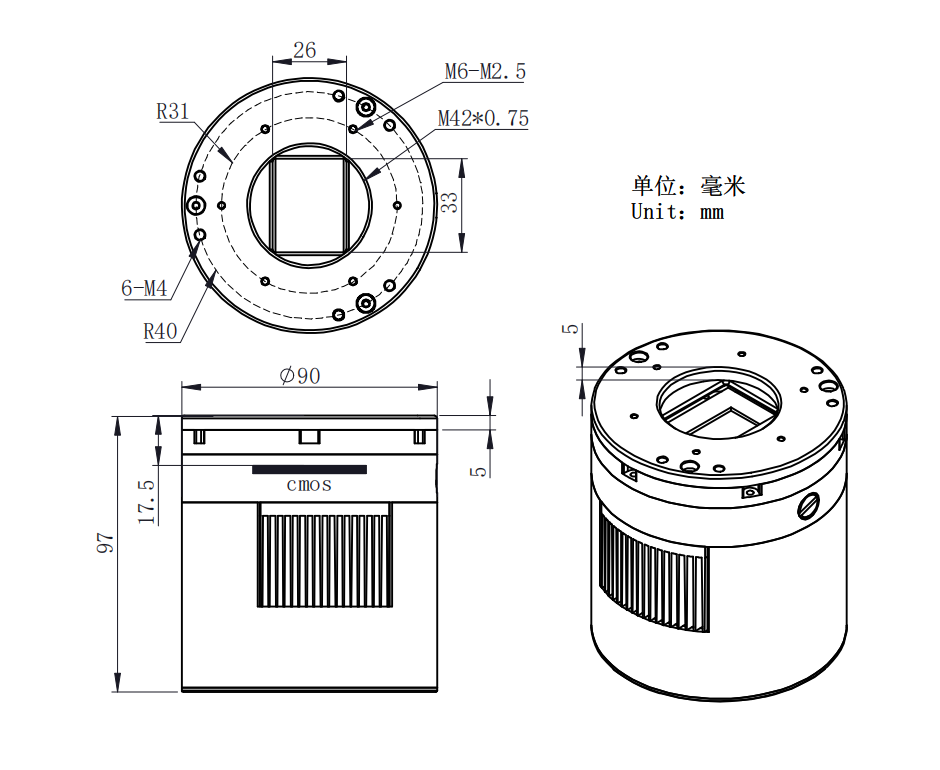

        • Dimensions: 90mm Diameter
        • Weight: 700g

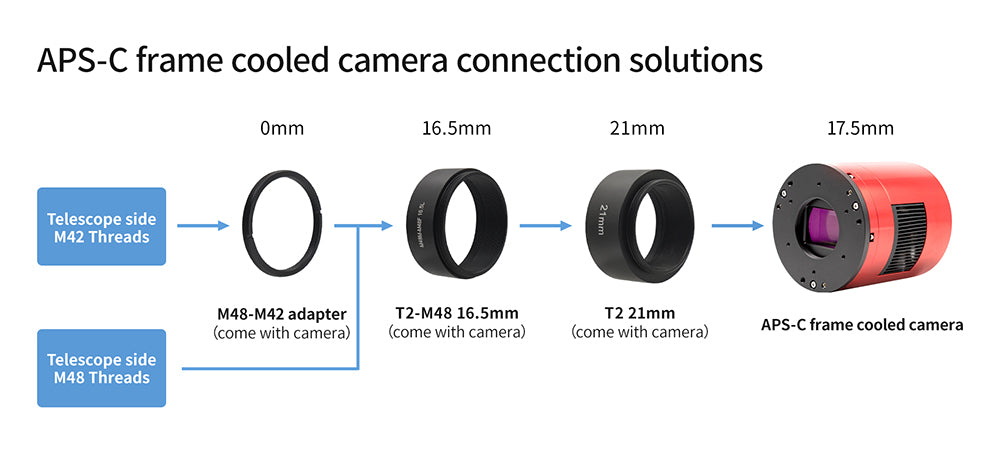

        • Back Focus Distance: 17.5mm
        • Cooling: Regulated Two-Stage TEC
        • Delta T: 35°C below ambient
        • Camera Power consumption: 1.15A at 5V
        • Cooler Power consumption: 12V at 3A Max
        • Working Temperature: -5°C - 50°C
        • Storage Temperature: -10°C - 60°C
        • Working Relative Humidity: 0% - 80%
        Max FPS at full resolution: (16Bit ADC)
        • 6248 × 4176 3.51fps
        • 4096 × 3072 4.75fps
        • 4096 × 2160 6.71fps
        • 3840 × 2160 6.71fps
        • 1920 × 1080 13.13fps
        • 1280 × 720 19.29fps
        • 640 × 480 28.06fps
        • 320 × 240 51.44fps

        Download the ASI 2600MM-P Manual here

        Download the latest Camera Driver from ZWO here
