TSAPO80Q

Regular price€1.475,00
/
(Including VAT)

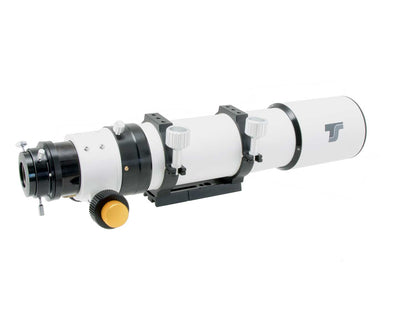

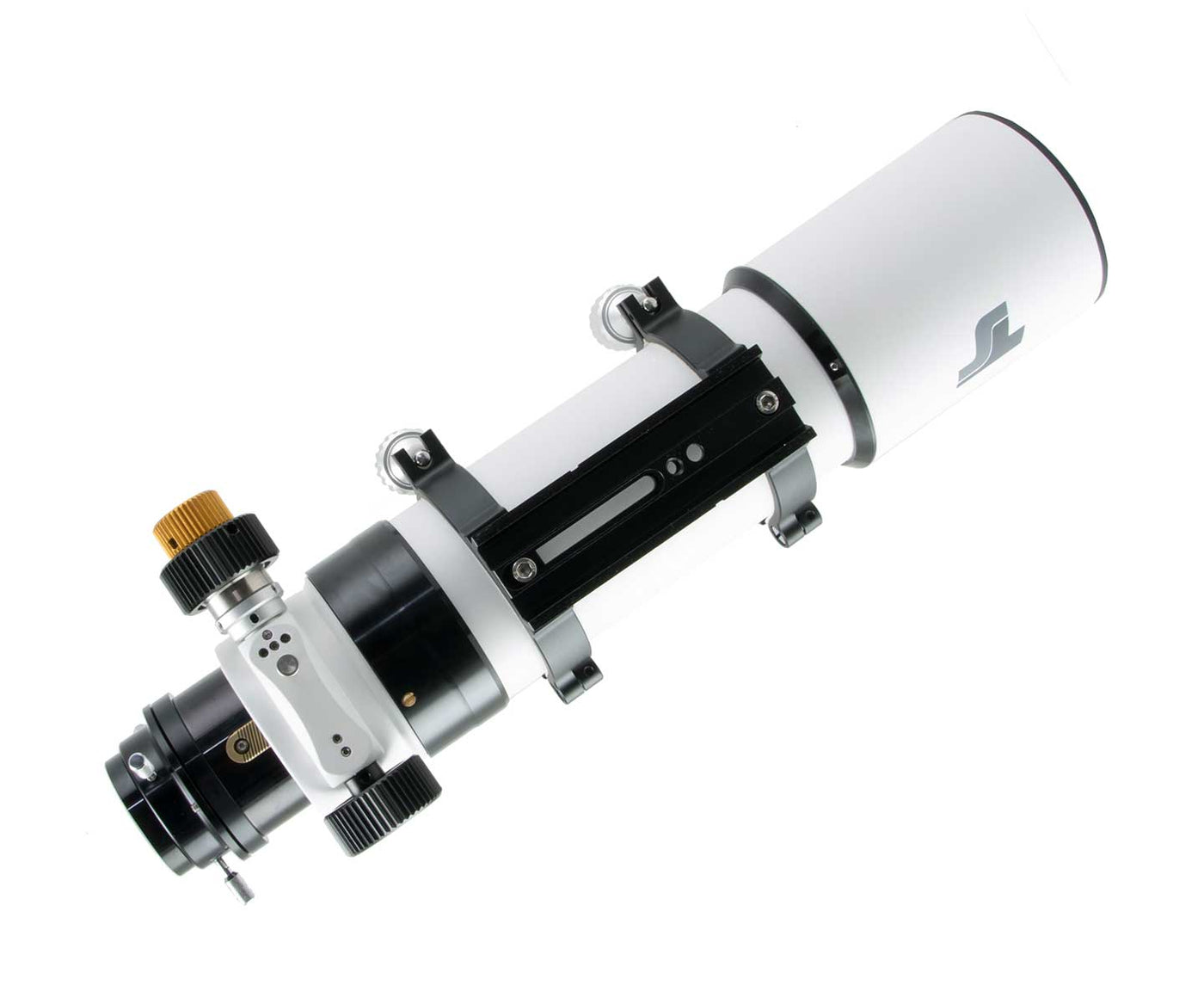

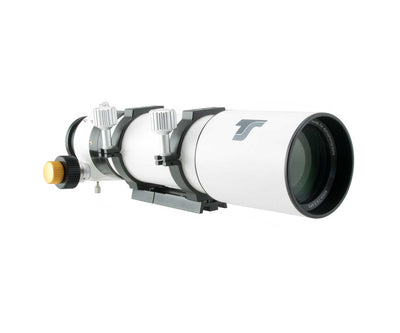

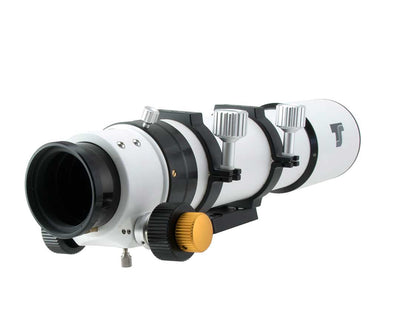

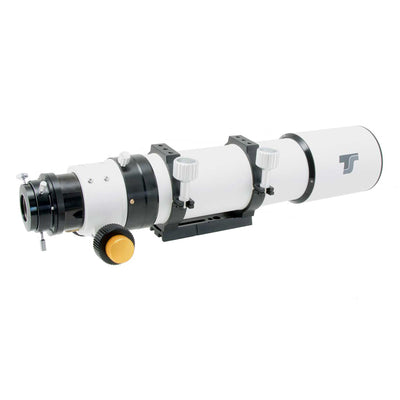

TSQ-80APO 80/544mm FPL53 Flatfield APO Refractor.
This flatfield Apochromat provides a color-pure and well-corrected image on the axis as well as in the field and thanks to the 2-element corrector in the OTA, it has a well-corrected image circle of 45 mm in diameter. This means you can also use cameras with full-frame sensors giving you a nice wider field of view of the target you are imaging.

Adaptation of Cameras:
The generous working distance is between 65mm and 155mm from the M68 thread and to connect a DSLR or an Astrocamera via the M48 thread, you will need the M68A-M48A-30 adapter. Cameras with a T2 (M42x0.75) connection will require a TSM48i-T2A reduction adapter. The adapter itself is only 6mm thick, so you still have enough space for a DSLR camera with T2 adapter or an Astrocamera.

Features and benefits of the TSQ-80APO:
  • Modern 80 mm f/6 FPL53 triplet lens
  • Integrated 2-element field corrector with optimized distance to the lens
  • 2.5" CNC gear focuser (Rack & Pinion) with ball bearing and 1:10 micro reduction
  • Each Quadruplet Apo is checked by Teleskop-Service before shipping.
  • The moderate aperture ratio of f/6.8 is well suited for DSLR cameras and Astrocameras.
Technical Details:
  • Aperture: 80 mm
  • Focal length: 544 mm
  • Aperture ratio: f/6.8
  • Lens: FPL53 triple lens with air gap
  • Corrector: 2-element corrector at an optimized distance from the lens
  • Field of view: 45 mm diameter with full correction and illumination
  • Back focus from 2" receptacle: 130mm with retracted extension
  • Back focus from the M68x1 female thread: 148.5mm with retracted pull-out pipe
  • Adjustment range of the extract: 90mm
  • Tube length with inserted dew cap: 450mm
  • Tube diameter: 89mm
  • Dew cap diameter: 112 mm
  • Camera-side connection: 2", 1.25" and M68x1 female thread
  • Tube weight with tube clamps: 3.5kg

Whats included:

  1. 80 mm Quadruplet Apochromat Refractor
  2. CNC pipe clamps
  3. GP/EQ5 Level dovetail bar with photo tripod connection
  4. 2.5" RPA focuser with 2" receptacle
  5. Reduction from 2" to 1.25"
  6. Viewfinder shoe
