TS-Optics 50mm Complete Autoguiding Package
TS-Optics 50mm Complete Autoguiding Package
TS-Optics 50mm Complete Autoguiding Package
TS-Optics 50mm Complete Autoguiding Package
TS-Optics 50mm Complete Autoguiding Package

TS-Optics 50mm Complete Autoguiding Package


Regular price€365,95
(Including VAT)

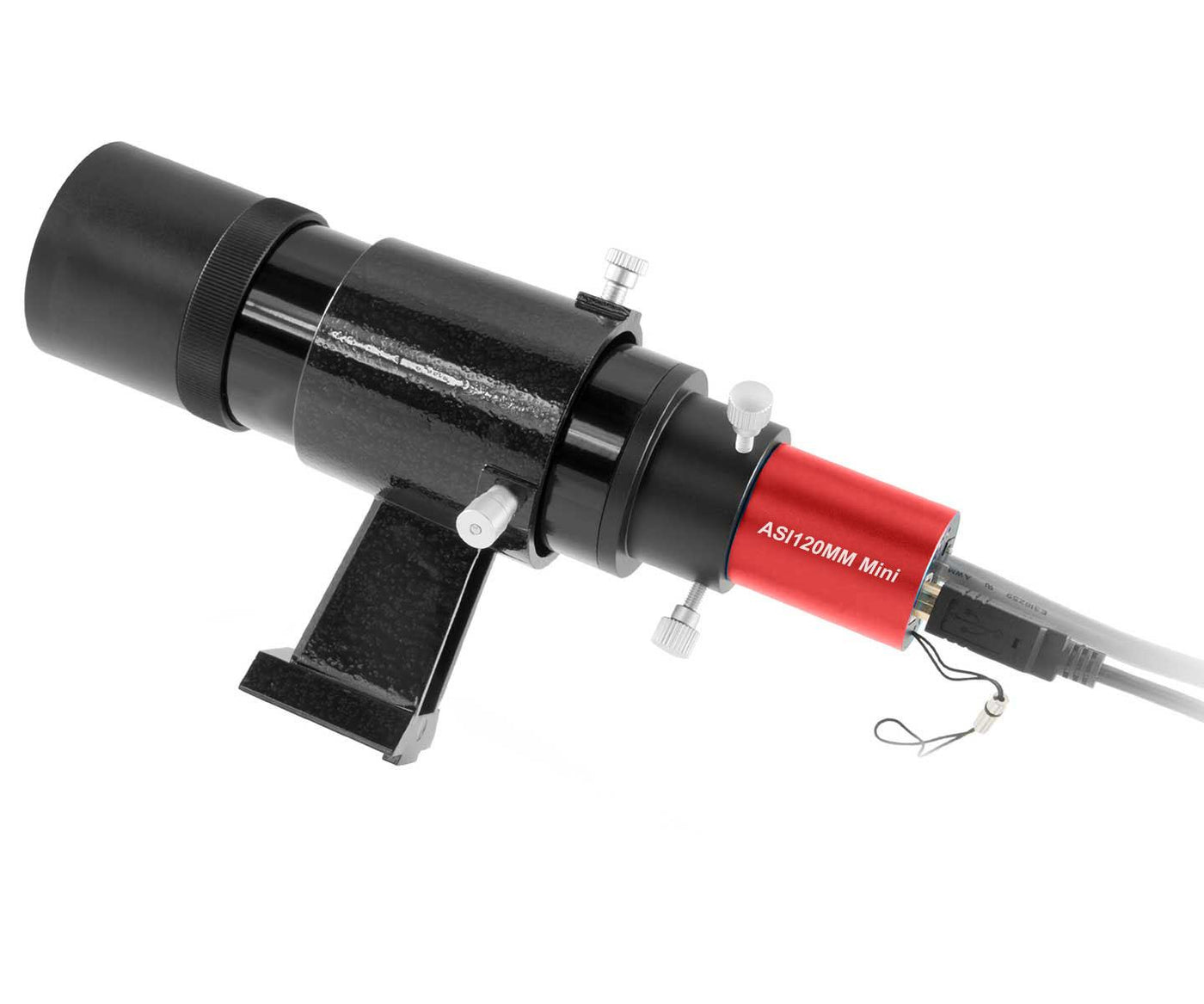

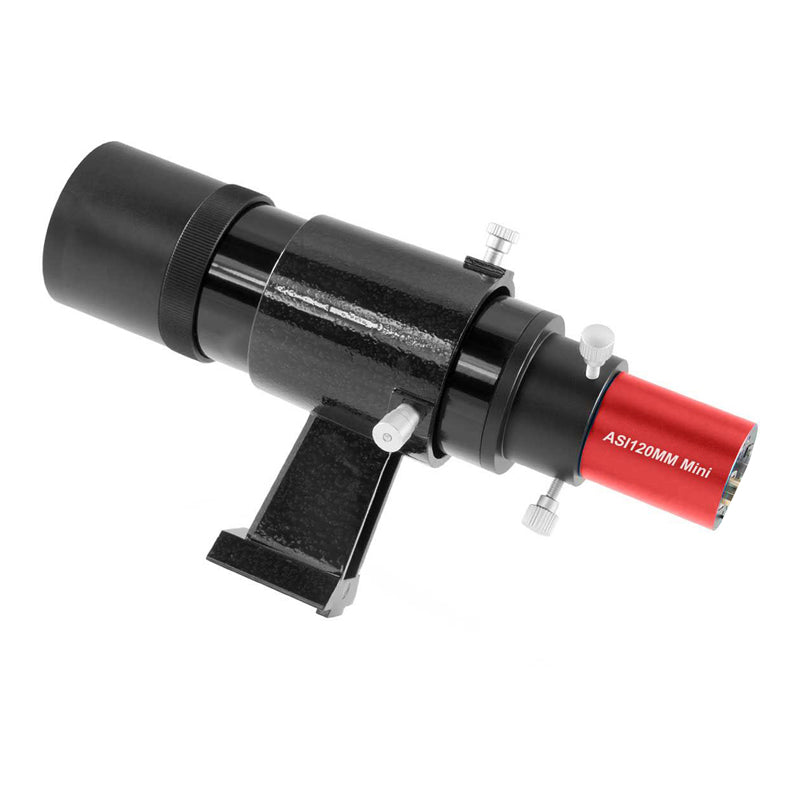

TS-Optics full Autoguiding Set for Astrophotography:
This complete set is everything you need to get setup for Autoguiding and long exposure deep space astrophotography. It consists of a compact 50mm Guide tube (Ideal for Autoguiding using imaging scopes up to 1000mm F/L or 8" Aperture) and a powerful autoguiding camera, for long exposures with your telescope.

This complete solution is easy to install and enables active tracking control, also known as autoguiding.

A viewfinder shoe is also included, so you can mount the Guidescope on tube clamps or in a separate place of your telescope. The software for the ASI120 Mini guide camera is suitable for a number of different Autoguiding software packages including PHD Guiding, Guidedog, Metaguide, Guidemaster (Freeware) or AstroArt, MaxIm DL (chargeable).

Step-by-Step Setup:

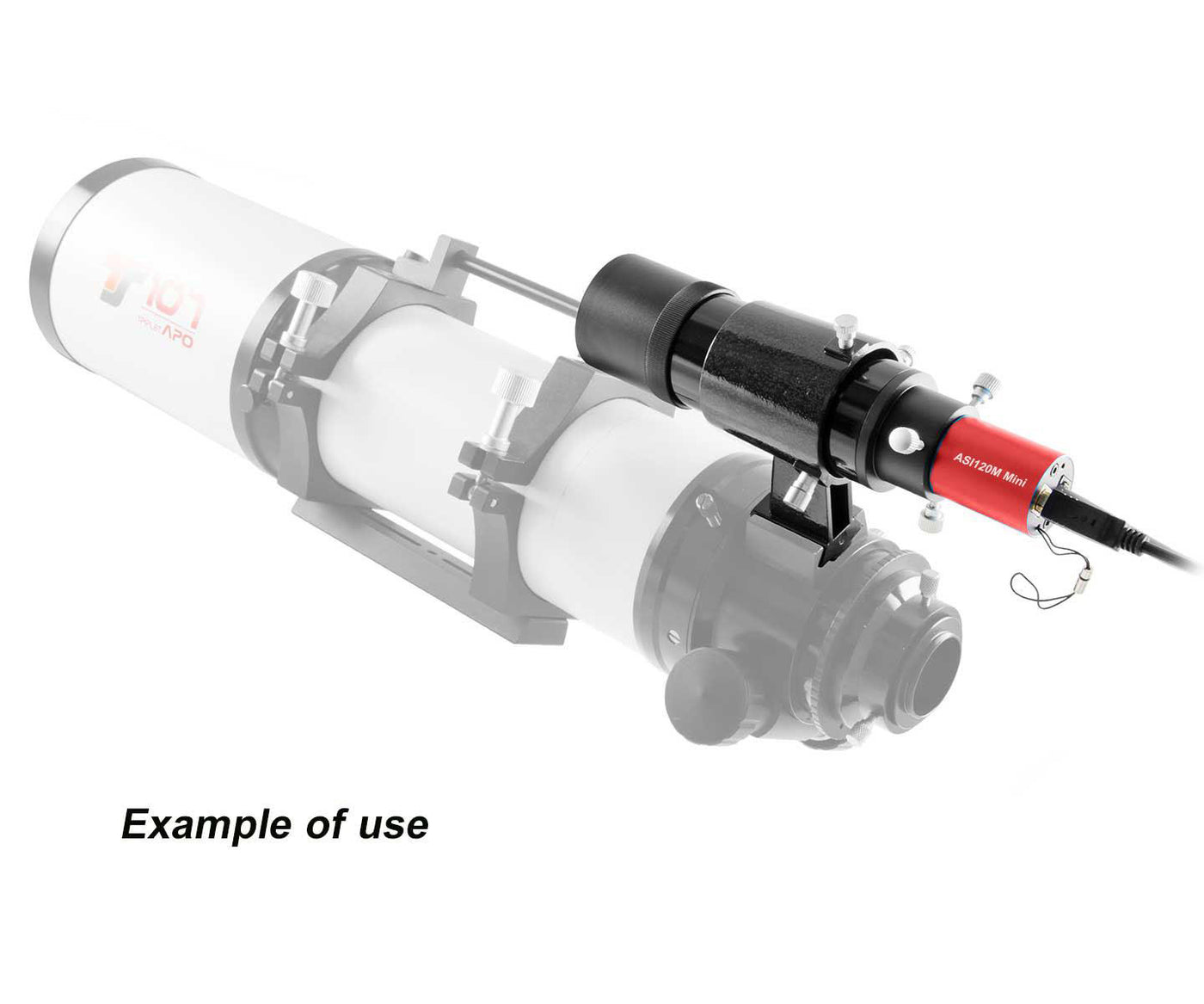

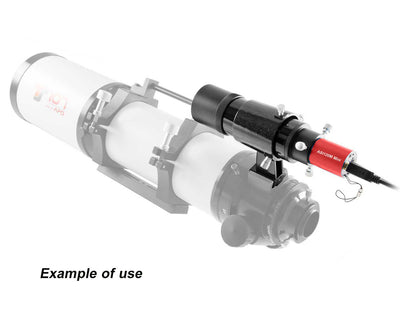

  1. Attach the Guidescope & Camera to the main OTA
  2. Use the ST-4 autoguider socket of your mount to connect the guide camera and your mount (Your mount needs to be ST4 compatible)
  3. Connect the tracking camera to your Windows computer and connect to your guiding software of choice.
  4. Focus the guide camera with the focuser - and you're ready to start astrophotography. Note: this is a brief overview and exact steps will vary depending on what Guiding software you decide to use.


  • Guidescope Aperture: 50 mm
  • Guide Scope Focal Length: 162 mm
  • Optics: 2-element achromatic lens with multi-coating
  • Focusing: 1.25" receptacle with 3 fixing screws
  • Weight: Only 450g
  • Material: The guide tube and clamps are made entirely of metal
  • Suitable for: Standard Vixen viewfinder shoes

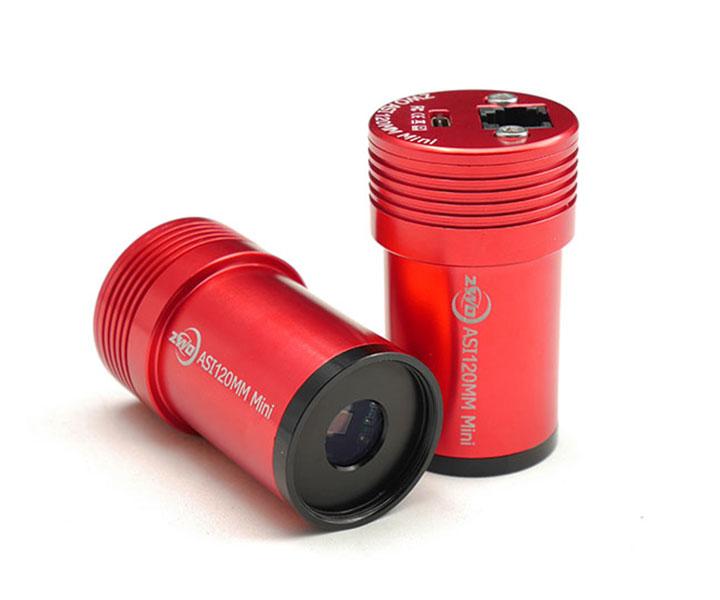

  • Camera: ZWO ASI120MM mini camera with 1.2 MP mono CMOS sensor with 4.8x3.6 mm size
  • Pixels: 3.75 μm pixels - 1.2 MP
  • Sensitivity: 75% QE for short exposure times
  • Mounting connection: ST-4 Autoguiding connector
  • Power supply: via USB
  • Operating System: Windows 7, 8, 10

Whats included:

  1. TS Optics 50mm Mini Guide Telescope with adjustable mount
  2. Viewfinder Shoe
  3. 1.25" Parfocal Ring
  4. Tracking Camera and Astro Camera ASI120MM mini
  5. USB Cable & ST4 Autoguider cable
Download the camera drivers for the ZWO ASI120 Mini here
