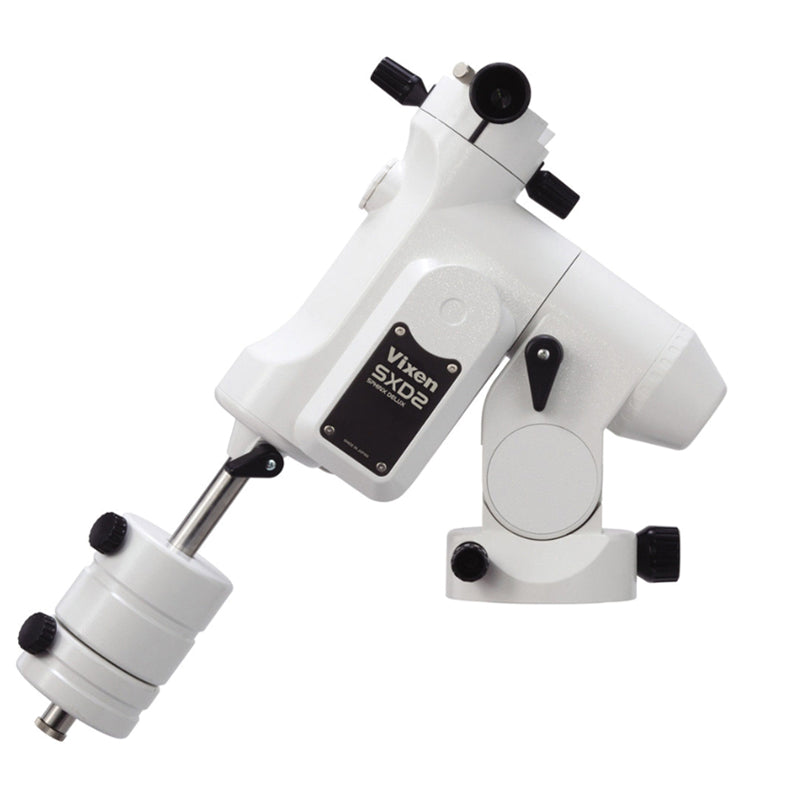

Vixen has developed a new generation of SX mounts for demanding observers and astrophotographers. The SXD2 mount comes with the new StarBook 10 control feature and be operated manually or with a computer. Featuring the same precision stepper motors as the top-of-the range AXD mount, the SXD2 sets a new standard for performance and precision in the Vixen mount range.

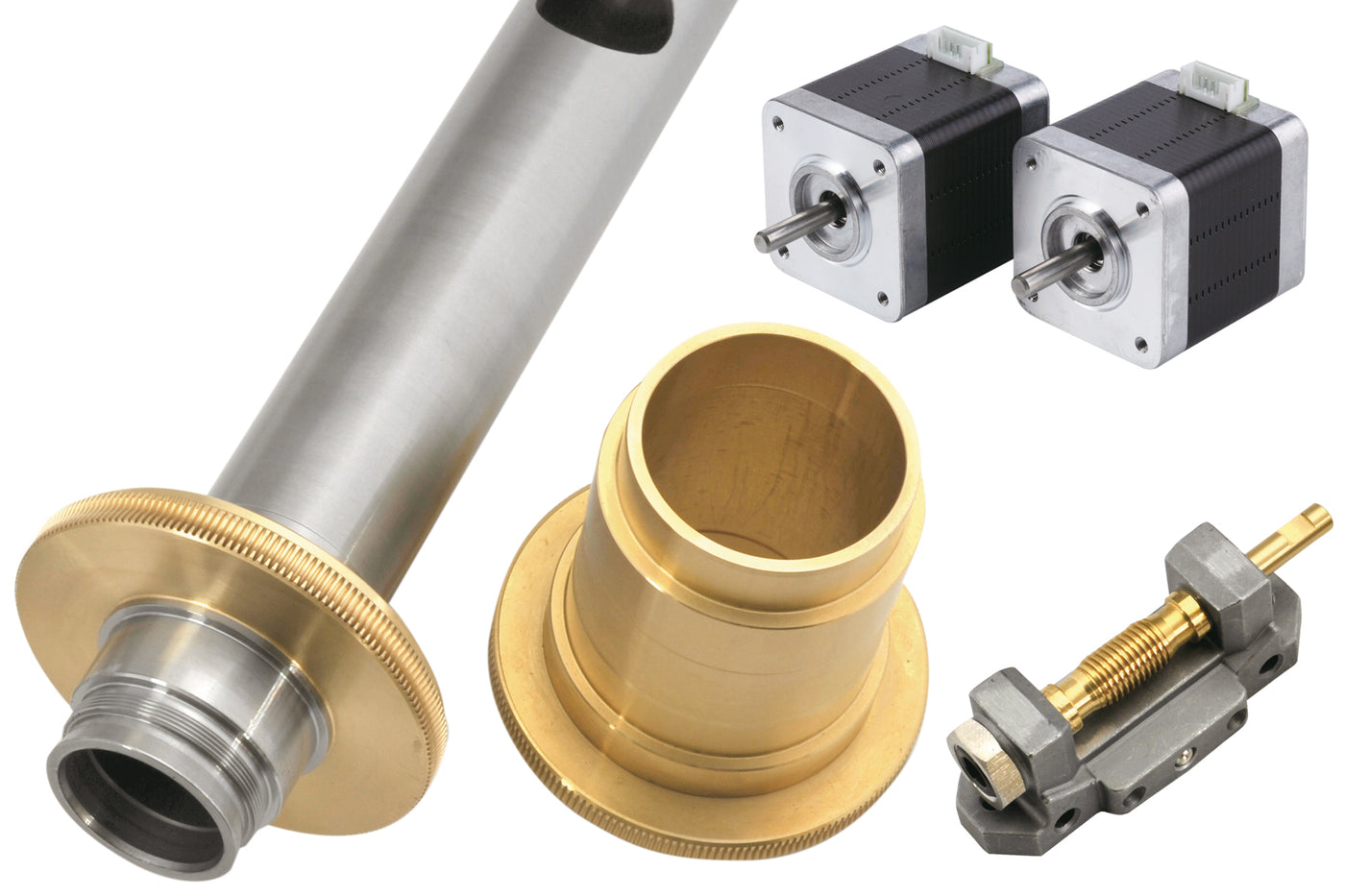

Precision stepper motors and micro-step motion control system: The star feature of the SXD2 is the precision stepper motors, which offer better performance and responsiveness than previous models. The micro-step motion control system has powerful yet very quiet drive characteristics that offer both fine control and quick swivel movements.
Built-in bearings: The bearings of the RA and DEC axles and the worm shafts were significantly improved in order to reduce the load on the motors. The motors are much quieter than those on previous models.
High-precision worm gears: High-precision processing technologies were used to rectify problems with the worm gear. The edges of both worms and worm gears are particularly smooth, which enables them to deliver very high precision.

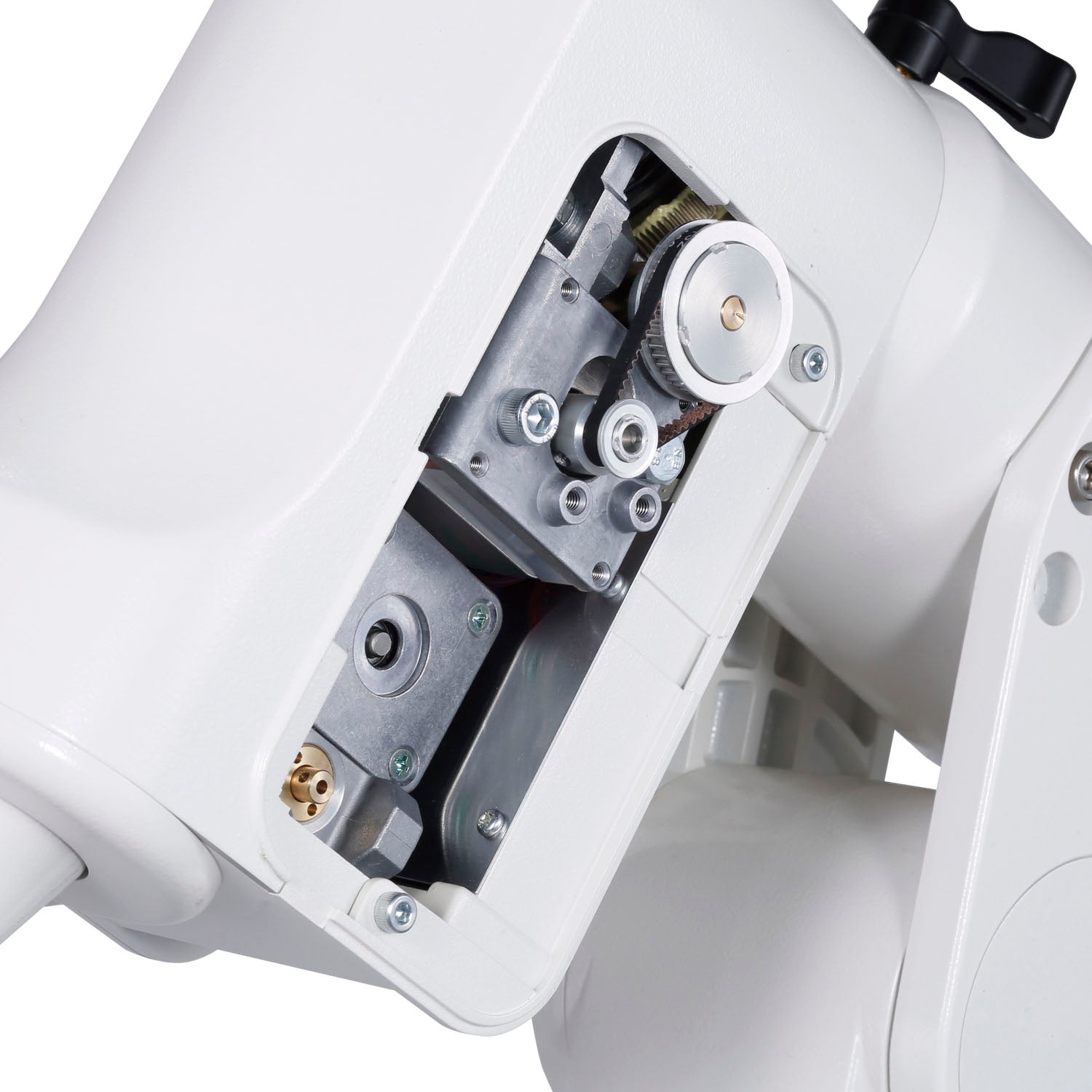

Declination axis functions as counterweight: The sturdy motor units are built into the bottom of the declination axis to ensure that the SDX2’s centre of gravity is below the intersection of the RA and DEC axis. As a result, fewer additional counterweights are required.
Weight & Dimensions:
Total length: 360 mm
Total width: 120 mm
Total height: 360 mm
Net weight (without access.): 8.8kg
Mount type: Equatorial
Max Payload: 20kg (15kg Astrophotography)
Latitude adjustment range (degrees) (approx.) from 0
Latitude adjustment range (degrees) (approx.) up to 70
Body material: Aluminium
Material : Aluminium
Mount Type: German/Equatorial Mount with GoTo
R.A. Sprocket: 180 teeth
DEC sprocket: 180 teeth
Bearings: Carbon steel / decl. 35 mm RA 40 mm thickness

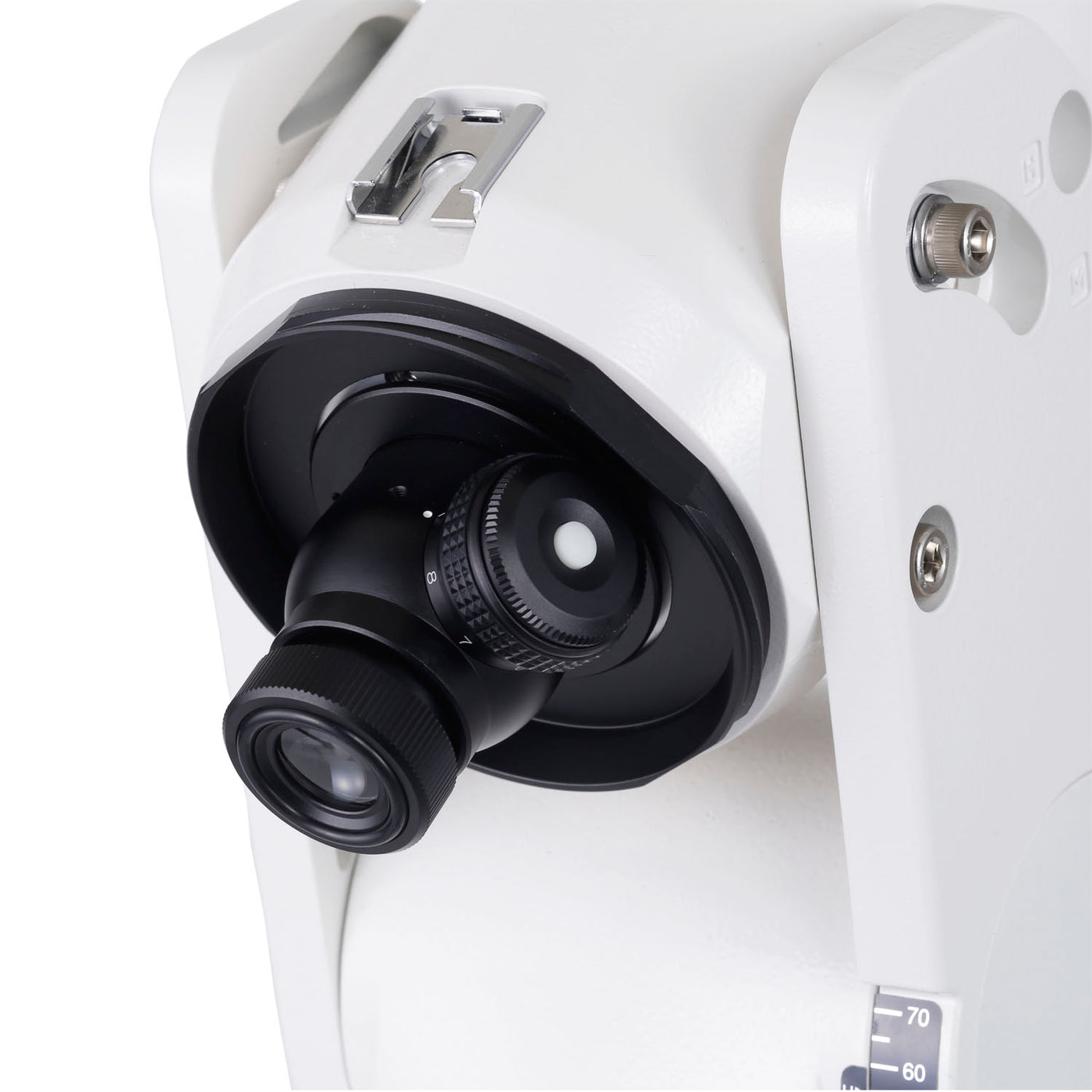

Polar finder telescope: 6x20 mm PFL polar viewfinder
Height fine adjustment: 0° to70°, (+/- 15° fine adjustment, height)

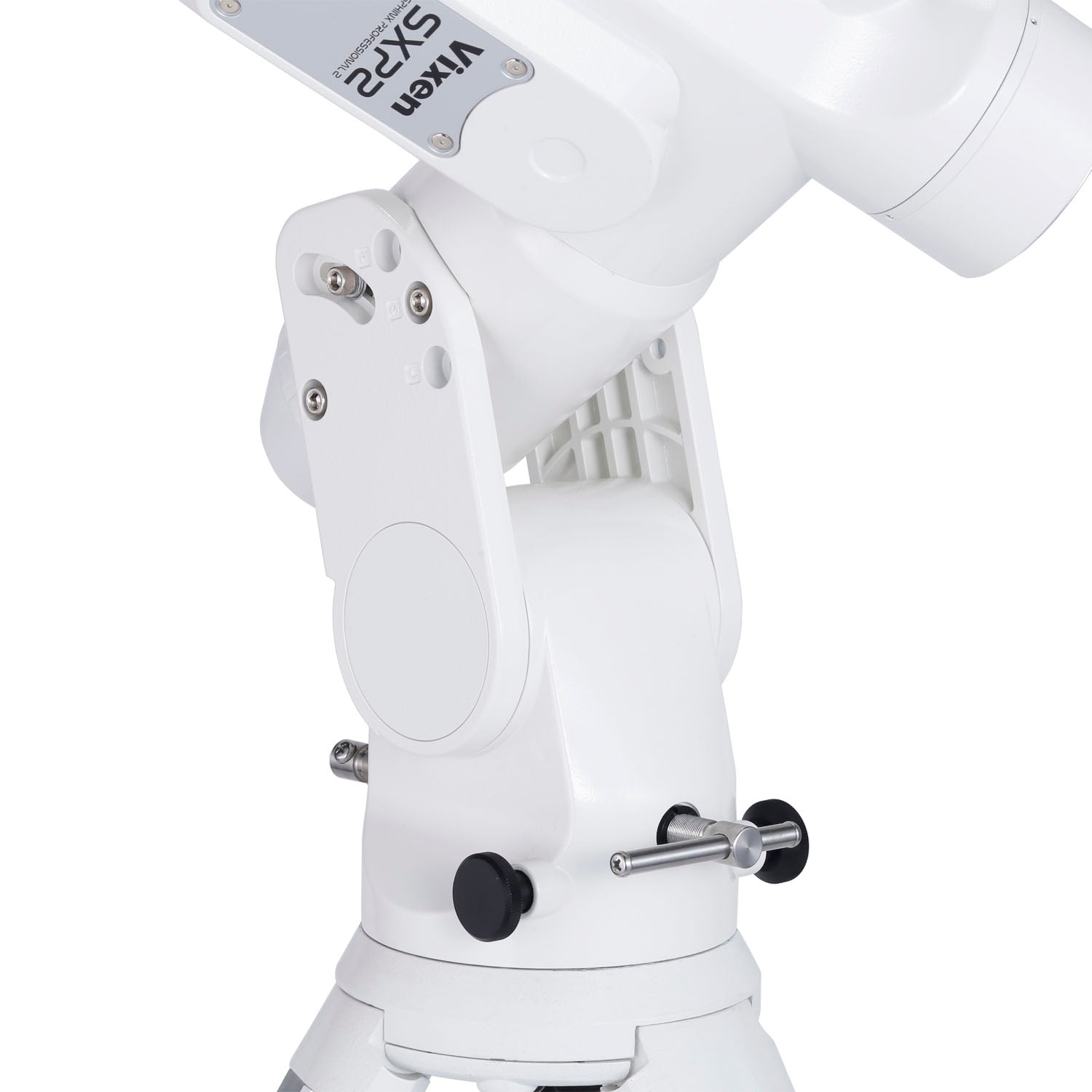

Azimuth adjustment Twin-screw fine adjustment

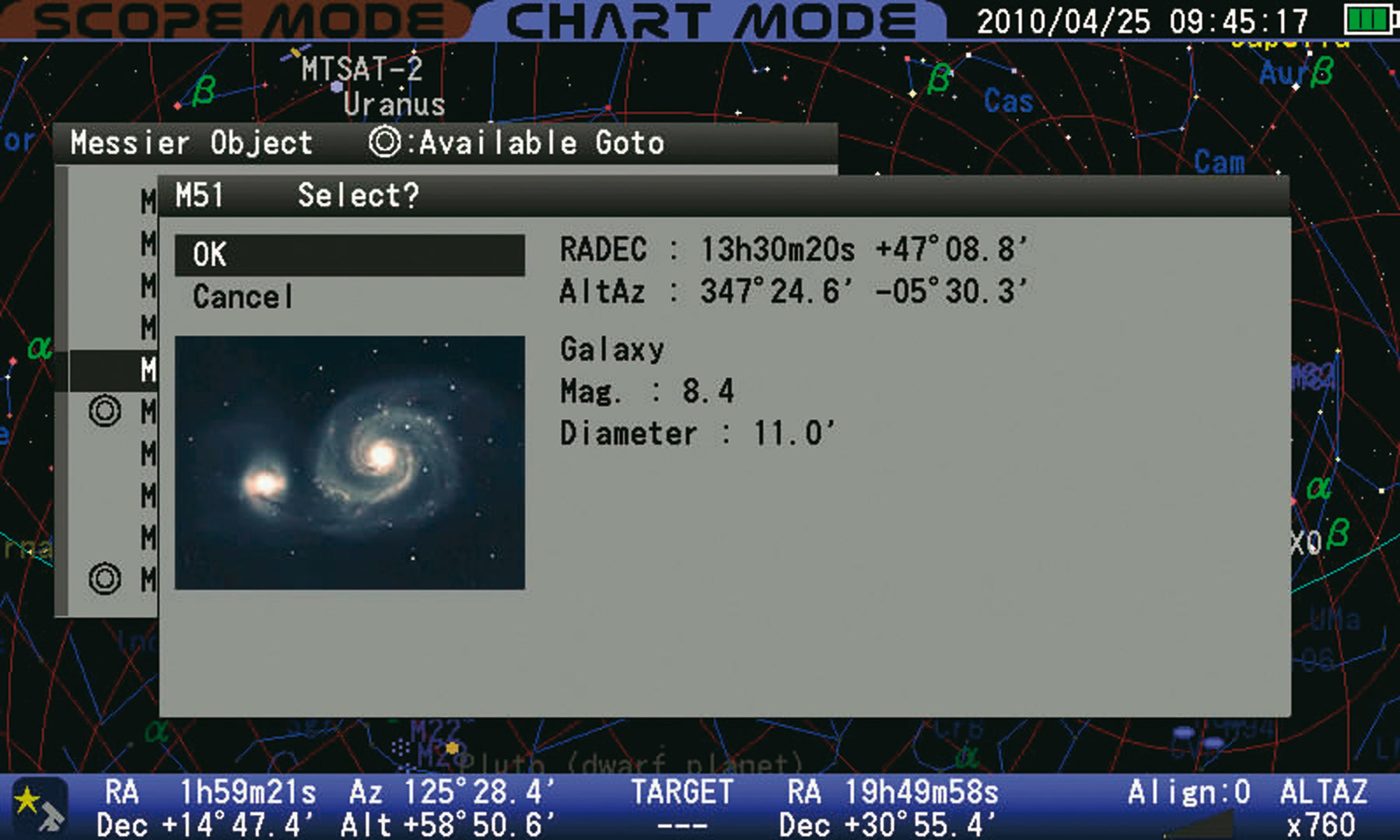

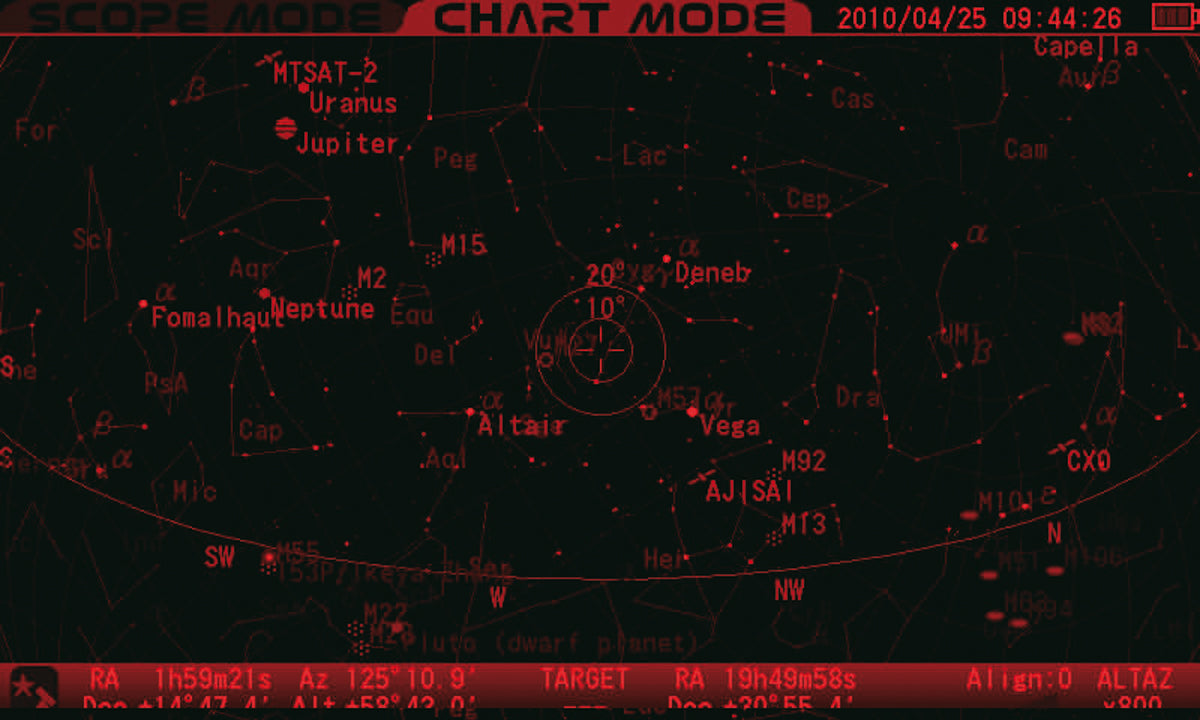

Control: StarBook 10
Power supply: DC 12 V; 0.4~1.7 A
Counterweight: 1x 1.9 kg and 1x 3.7 kg
Dimensions: 36 cm (H) x 12 cm (W) x 36 cm (L)
Weight: 8.8 kg (19.4lb), without counterweight
Sphinx SDX2 Mount

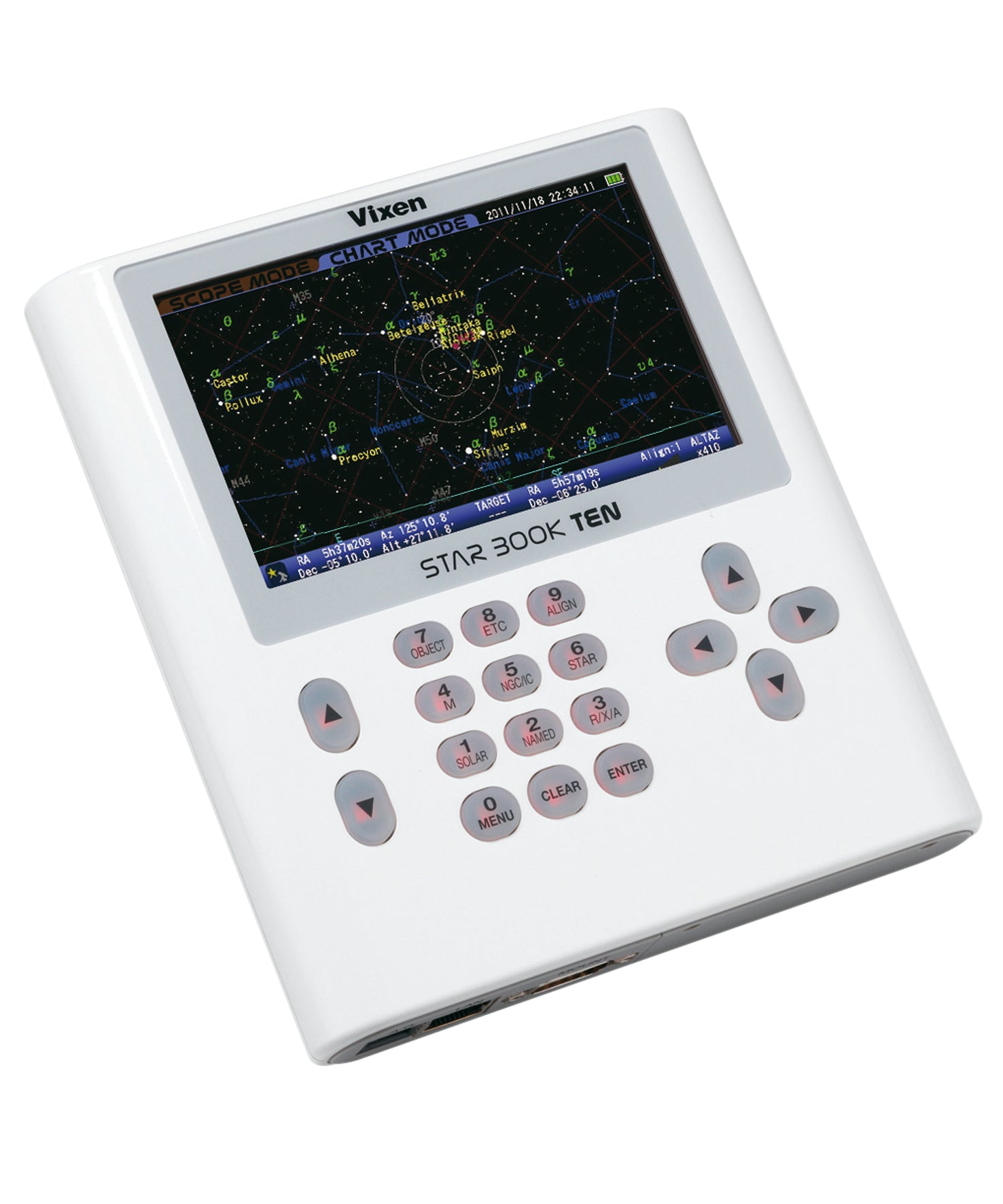

Starbook 10 Controller
1.9 kg and 3.7 kg counterweight

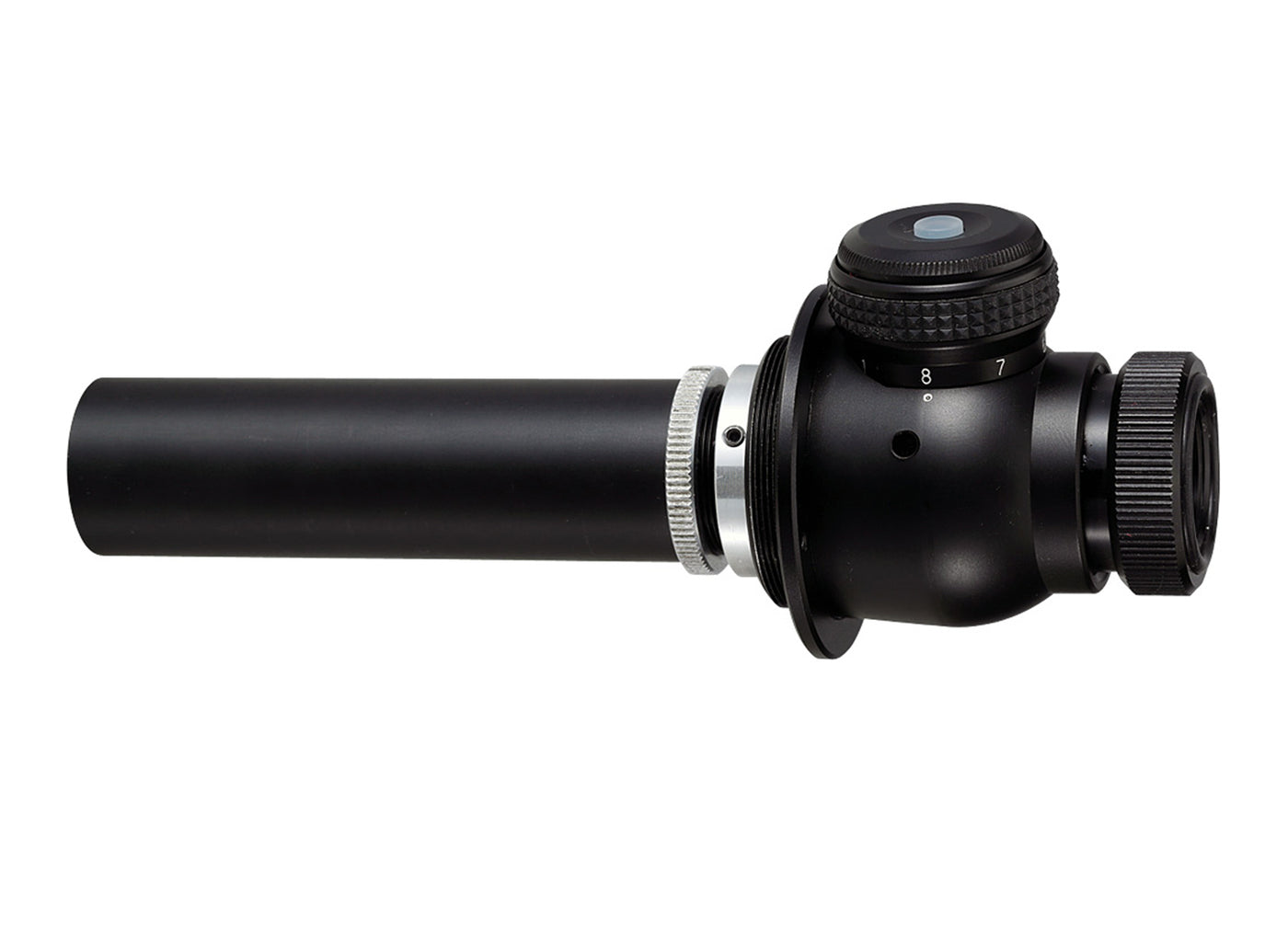

PFL-II polar viewfinder
Cigarette lighter cable
Note: Tripod Sold Separately
