Prism clamp for Vixen style mounting base
Prism clamp for Vixen style mounting base
Prism clamp for Vixen style mounting base
Prism clamp for Vixen style mounting base

Prism clamp for Vixen style mounting base

4910220

Regular price€39,95
/
(Including VAT)

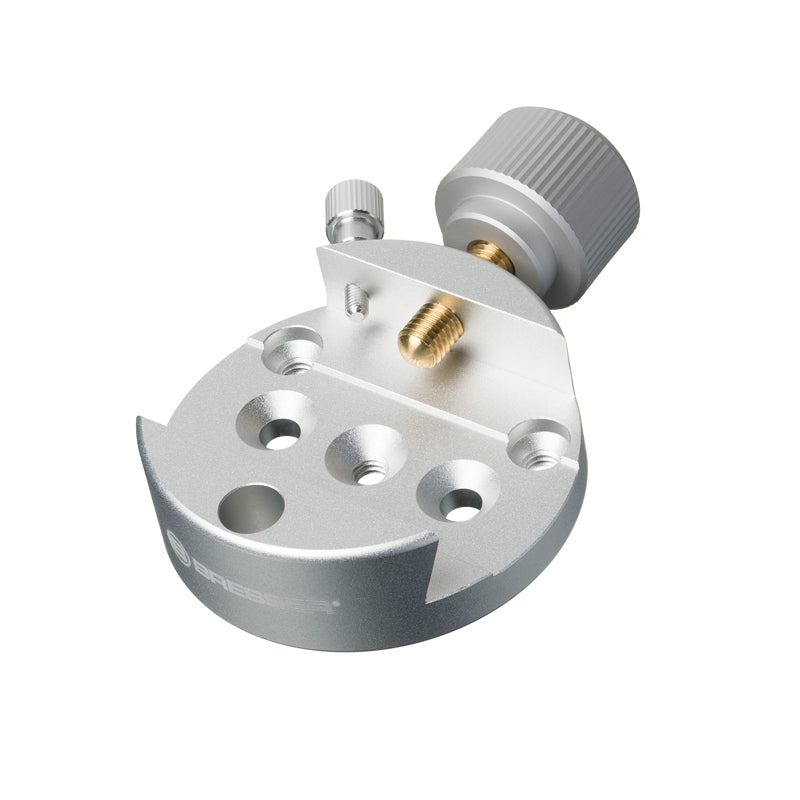

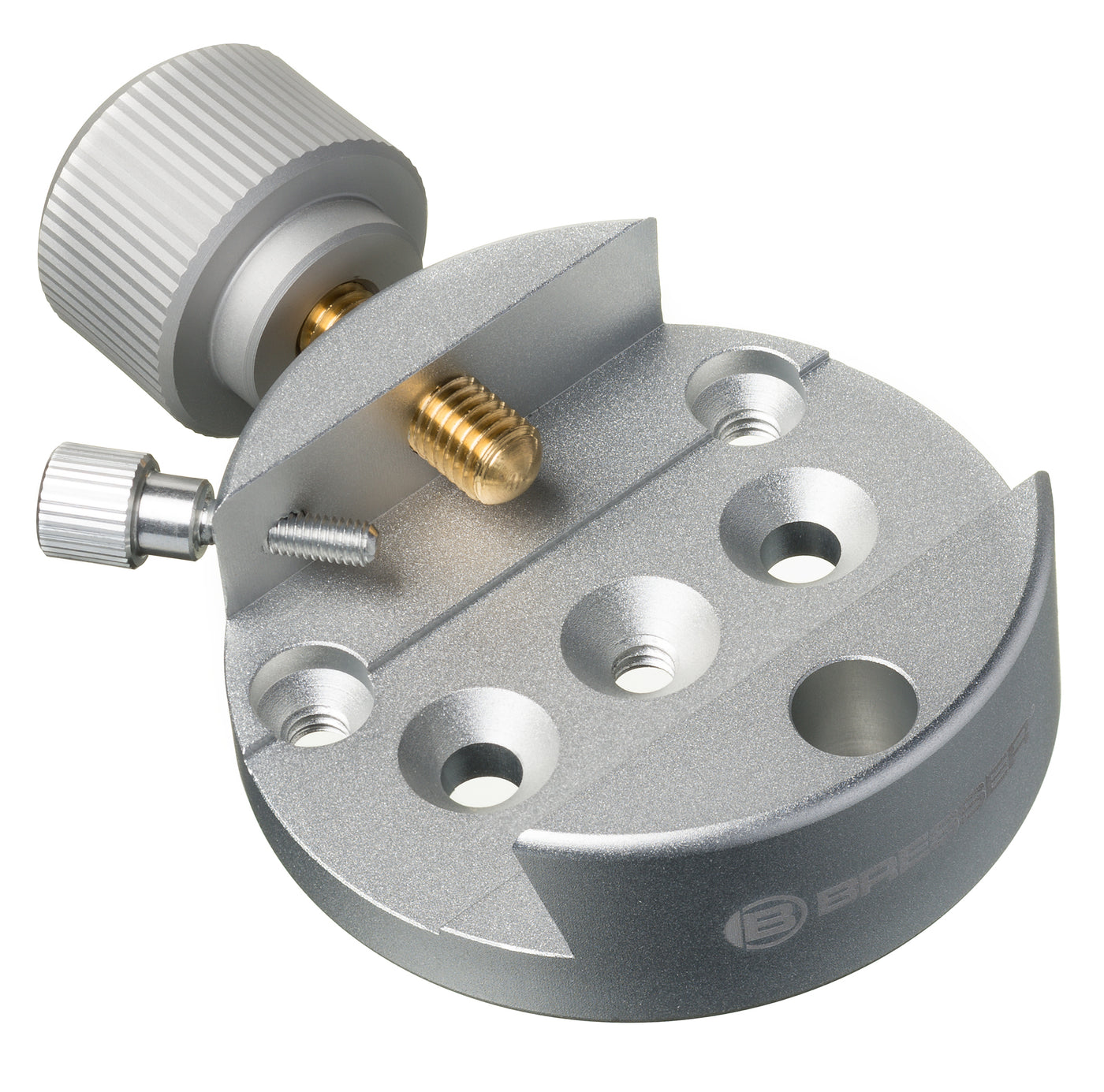

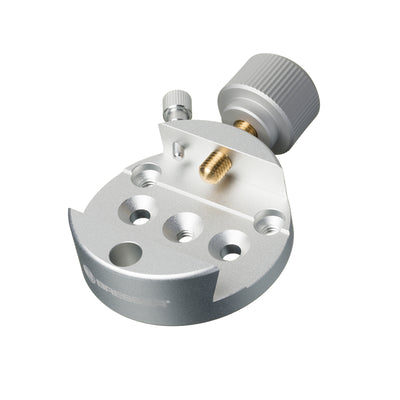

This universal prism clamp is suitable for accommodating all optical tubes equipped with a standard 44mm dovetail bar (Messier/ES/GP/Vixen). The set includes the correct screws so that the prism clamp can be mounted directly onto the carrying handle of the Bresser or Explore Scientific Telescopes and many oter brands too.

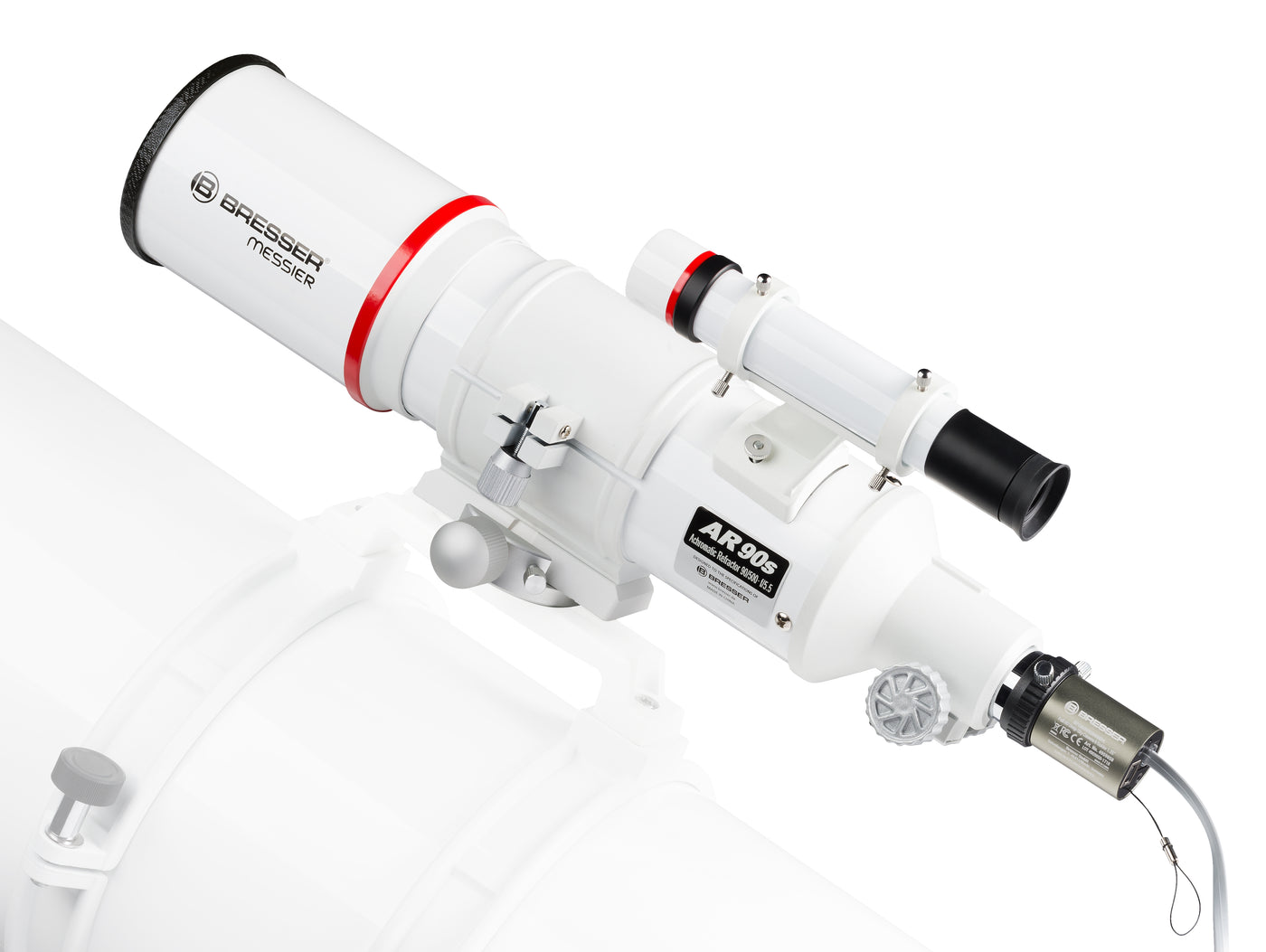

This makes it very easy to mount a guidescope for autoguiding or even a smaller telescope for wide field photography of the same target.

The prism clamp has 2 x 6mm countersunk holes (bore spacing 35mm) and 3 further 1/4" photo threaded holes in a 120 degree angular distance apart. The partial circle diameter of the clamp is 55 mm making it very versatile for various other telescopes and adapter plates.

Features:

  • Universal prism clamp - clamping width 44mm.
  • Suitable for Messier/ES/GP/Vixen.
  • Incl. mounting material for Messier/ES carrying handle.
  • For mounting a guide telescope.
  • Used for astrophotography and autoguiding.
  • CNC milled aluminium.
  • Additional 1/4" photo threaded holes.
Whats included:
  1. Prism clamp

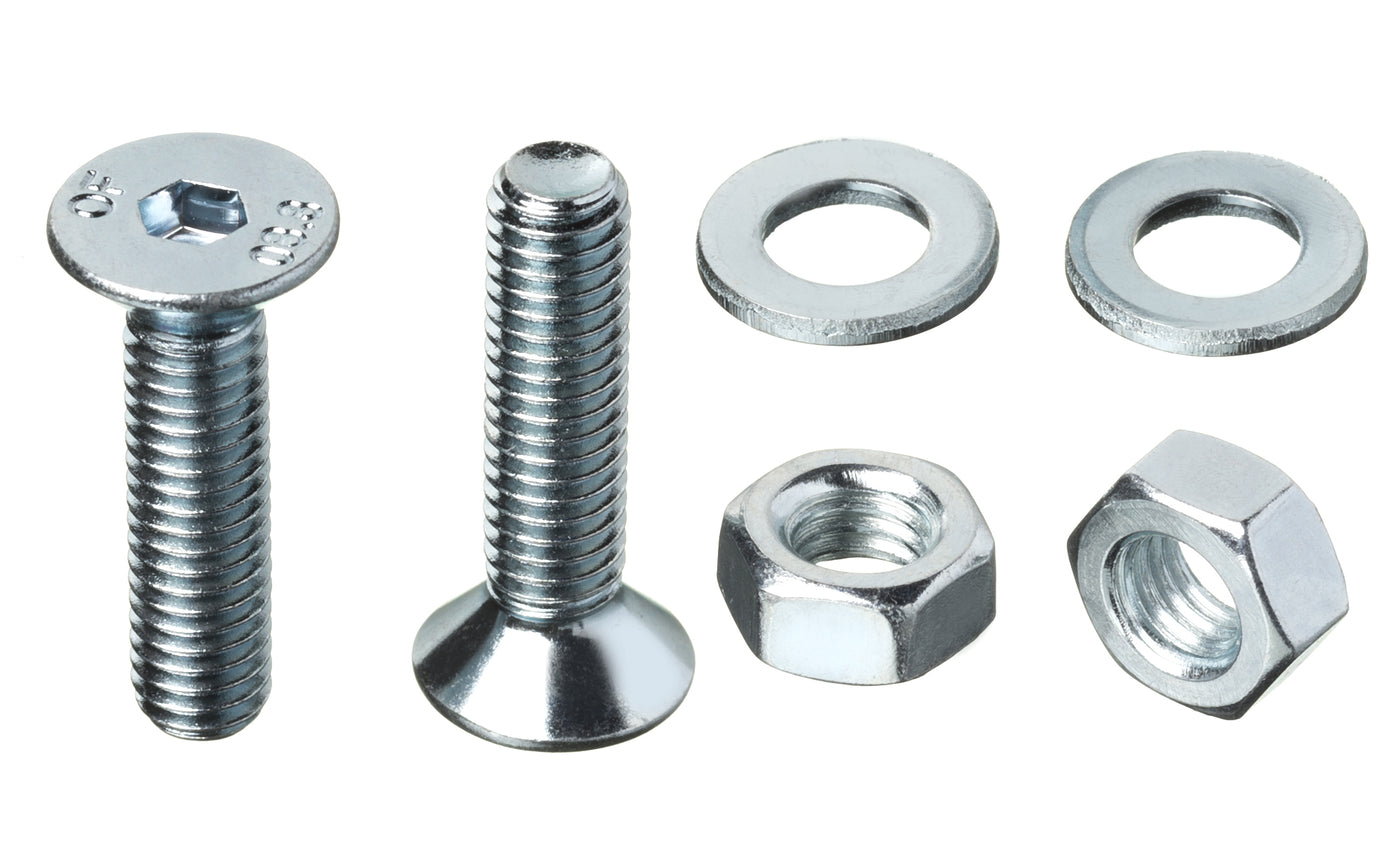

  2. Set of mounting screws (2x M6x25mm)
