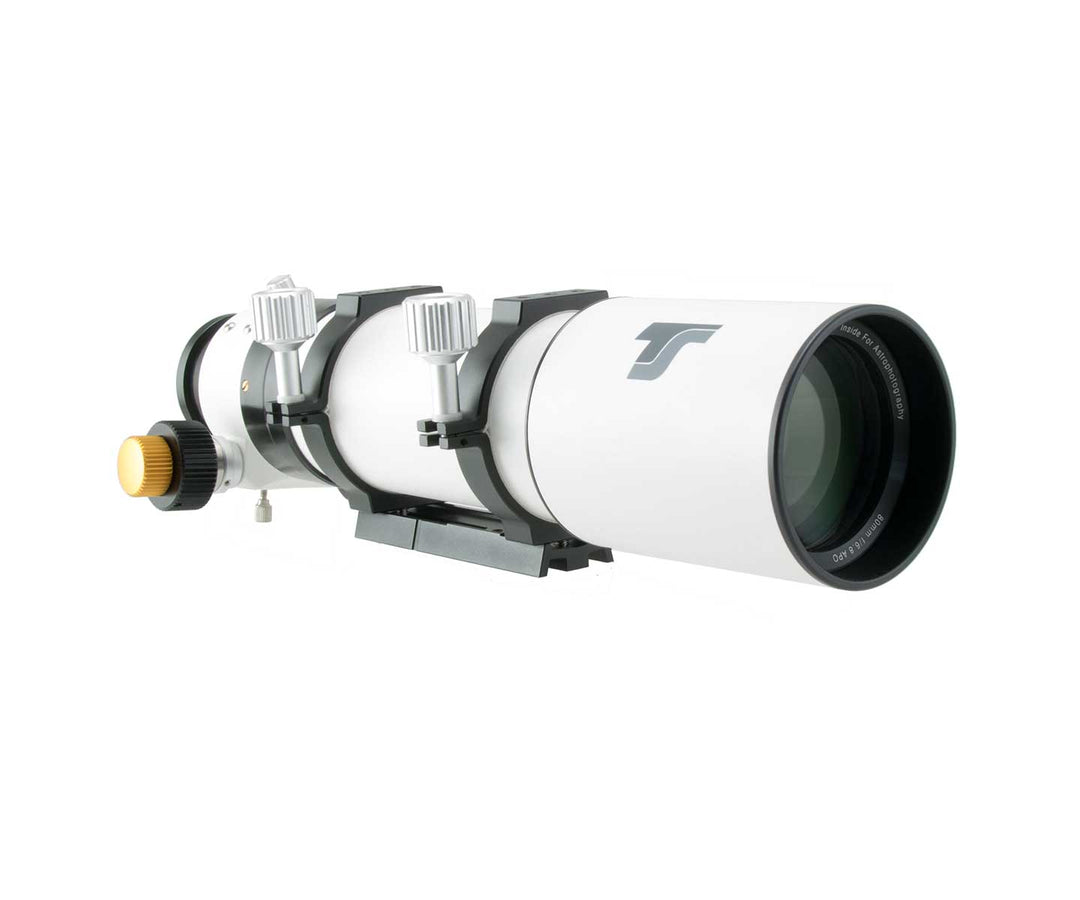

This flatfield Apochromat provides a color-pure and well-corrected image on the axis as well as in the field and thanks to the 2-element corrector in the OTA, it has a well-corrected image circle of 45 mm in diameter. This means you can also use cameras with full-frame sensors giving you a nice wider field of view of the target you are imaging.
Adaptation of Cameras:
The generous working distance is between 65mm and 155mm from the M68 thread and to connect a DSLR or an Astrocamera via the M48 thread, you will need the M68A-M48A-30 adapter. Cameras with a T2 (M42x0.75) connection will require a TSM48i-T2A reduction adapter. The adapter itself is only 6mm thick, so you still have enough space for a DSLR camera with T2 adapter or an Astrocamera.
Features and benefits of the TSQ-80APO:
- Modern 80 mm f/6 FPL53 triplet lens
- Integrated 2-element field corrector with optimized distance to the lens
- 2.5" CNC gear focuser (Rack & Pinion) with ball bearing and 1:10 micro reduction
- Each Quadruplet Apo is checked by Teleskop-Service before shipping.
- The moderate aperture ratio of f/6.8 is well suited for DSLR cameras and Astrocameras.
- Aperture: 80 mm
- Focal length: 544 mm
- Aperture ratio: f/6.8
- Lens: FPL53 triple lens with air gap
- Corrector: 2-element corrector at an optimized distance from the lens
- Field of view: 45 mm diameter with full correction and illumination
- Back focus from 2" receptacle: 130mm with retracted extension
- Back focus from the M68x1 female thread: 148.5mm with retracted pull-out pipe
- Adjustment range of the extract: 90mm
- Tube length with inserted dew cap: 450mm
- Tube diameter: 89mm
- Dew cap diameter: 112 mm
- Camera-side connection: 2", 1.25" and M68x1 female thread
- Tube weight with tube clamps: 3.5kg
Whats included:
- 80 mm Quadruplet Apochromat Refractor
- CNC pipe clamps
- GP/EQ5 Level dovetail bar with photo tripod connection
- 2.5" RPA focuser with 2" receptacle
- Reduction from 2" to 1.25"
- Viewfinder shoe
