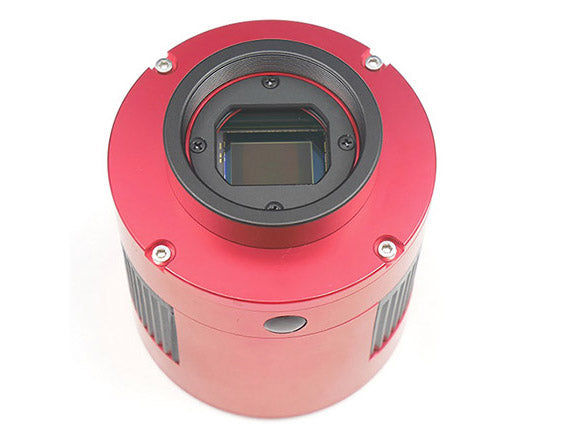

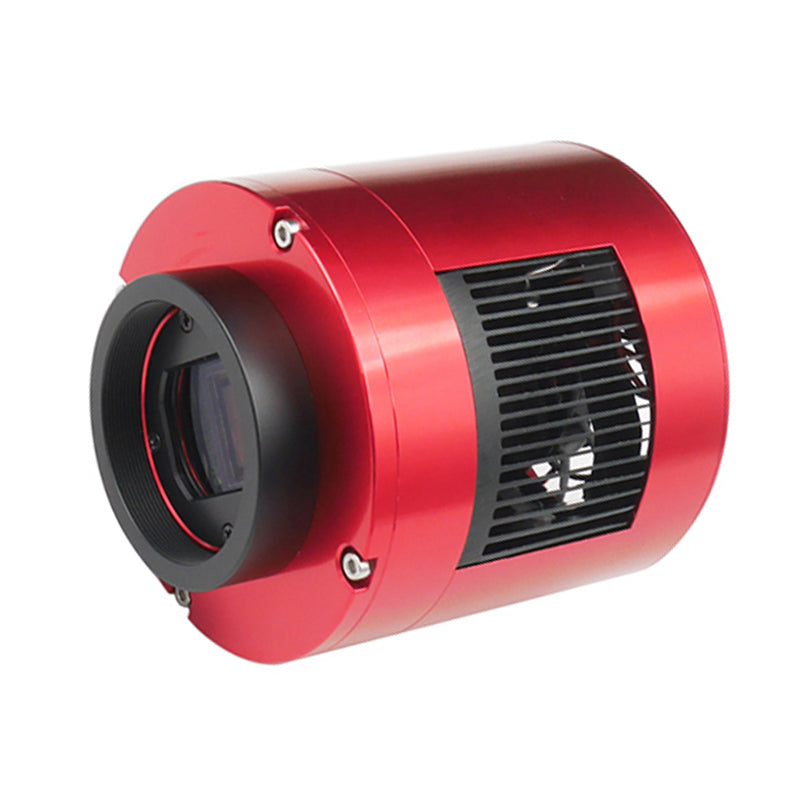

Advantages and features of the ASI MC294MCPro color camera:
- USB 3.0 for a fast download - can also be used with USB 2.0
- DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.
- Powerful Peltier cooling up to 45 °C below environment.
- Powerful Peltier cooling up to 35 °C below ambient

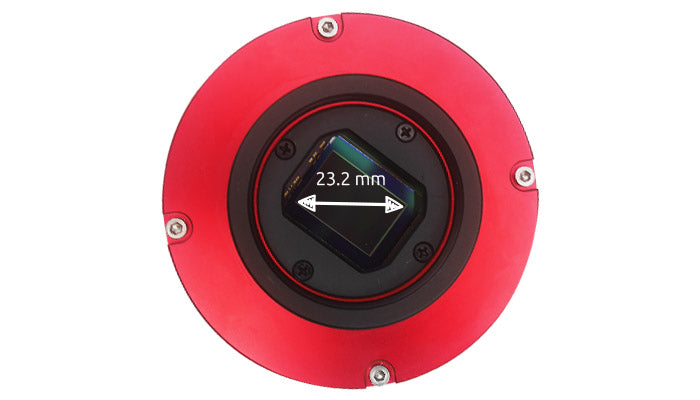

- Sensitive CMOS sensor with 23.2 mm diagonal - 11.7 megapixels
- Good resolution through 4.63 µm pixels
- Comes with AR protection window - full transmission also in IR. If infrared should be blocked, an IR-cut filter is necessary.

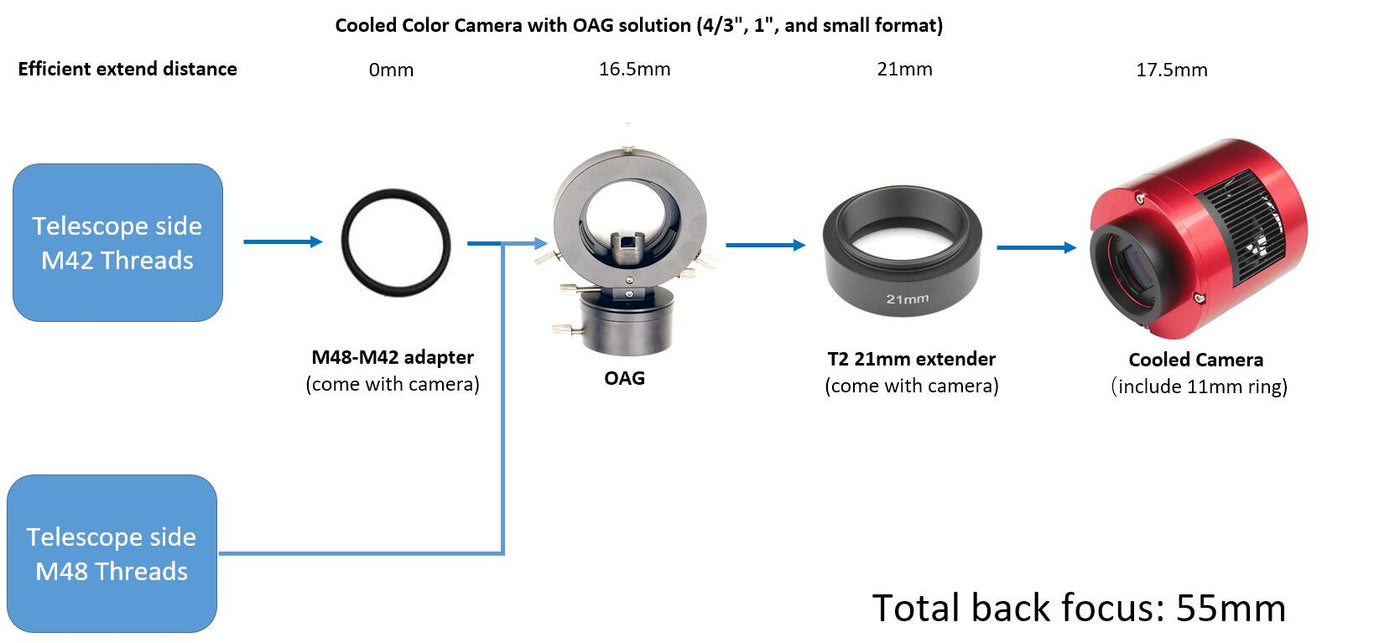

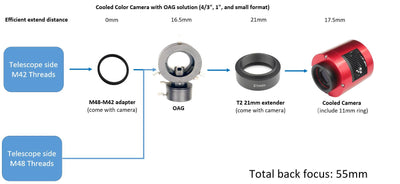

- Distance from T2 connection thread (female) to camera sensor: 17.5 mm

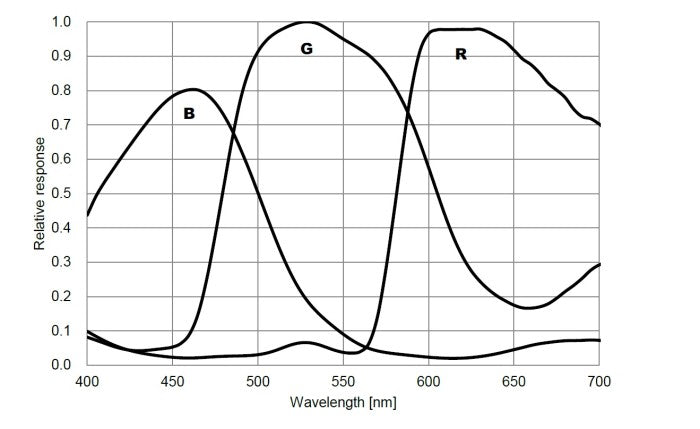

- Very high sensitivity - QE more than 75% - ideal astronomy camera for dim objects
- 14bit ADC

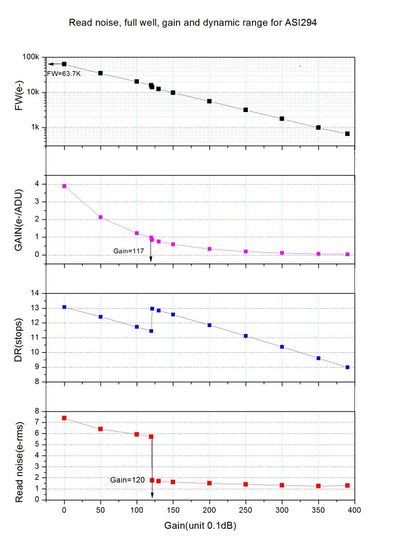

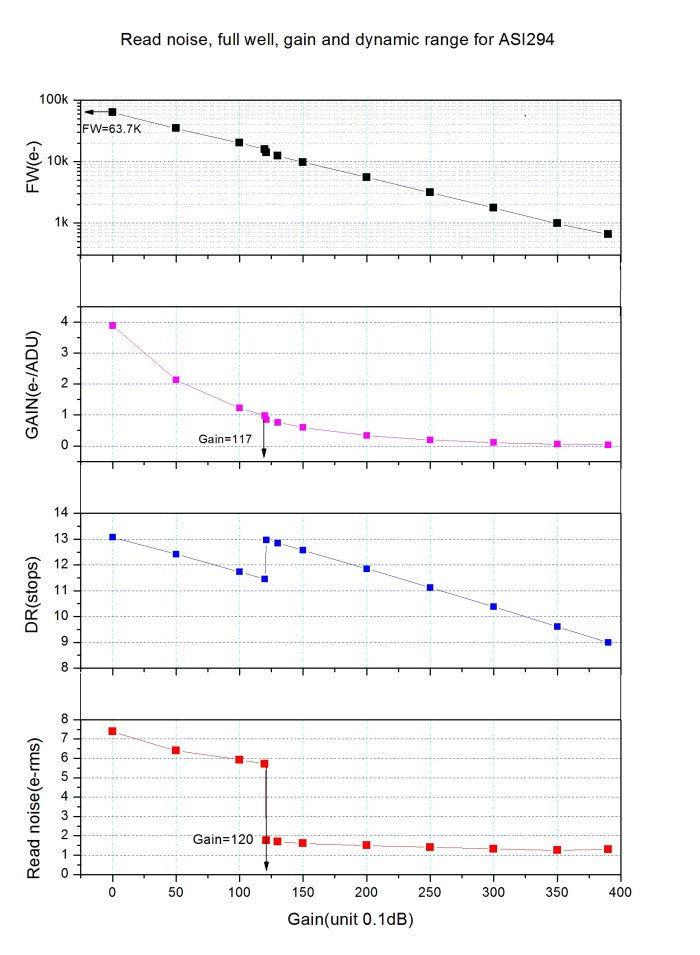

- HCG mode - if gain is higher than 120 (12 dB), read noise is reduced below 2e- - result: low-noise images despite extremely high sensitivity.
- Full well capacity 63700e - even bright stars do not burn out anymore, you get a better signal-to-noise ratio.

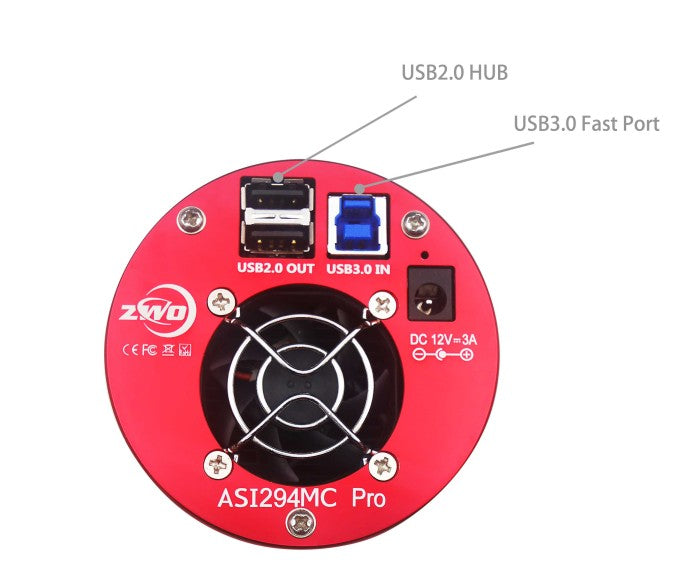

USB 3.0 Port & USB2.0 HUB:
- USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI294 Pro to run at 16 fps (14bit, normal mode) or 19 fps (12bit, high speed mode) at full resolution(11.7Mega).

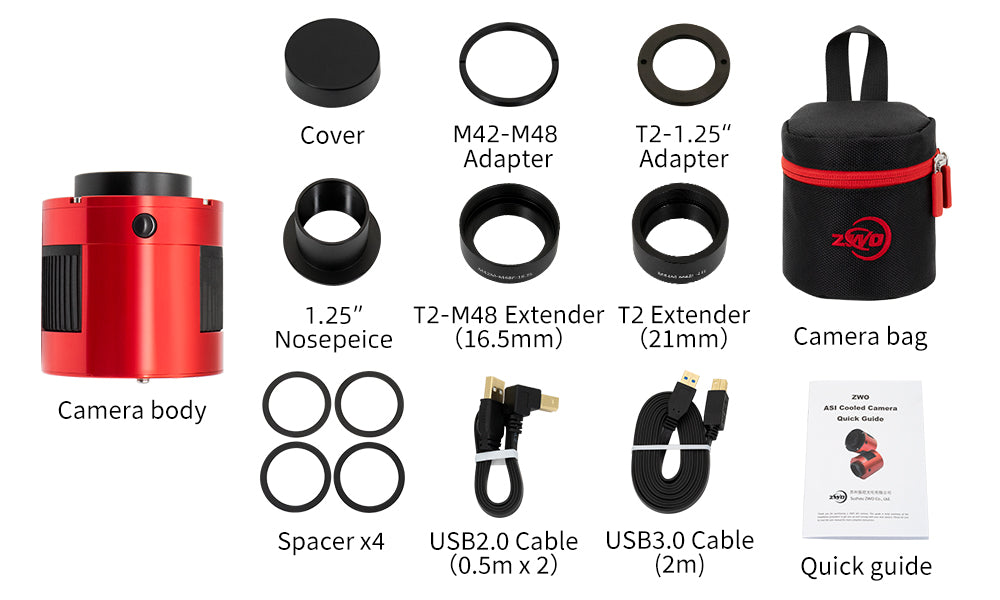

- USB 2.0 HUB: can connect with various accessories, such as filter wheel, guide camera and electronic focuser, so you can better manage your cables. The ASI294 Pro includes two short 0.5m USB 2.0 cables. The integrated USB 2.0 hub is powered by the external power source if you connect one.

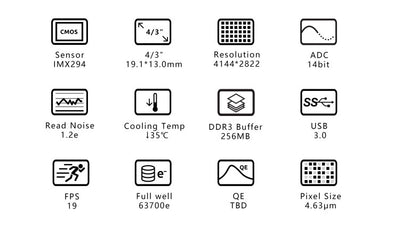

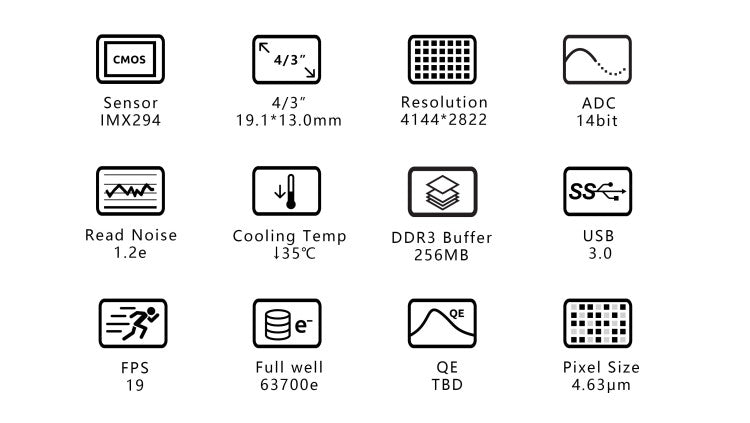

- Sensor: 4/3″ SONY IMX294 CMOS
- Diagonal: 23.2mm
- Resolution: 11.7Mega Pixels 4144X2822
- Pixel Size: 4.63µm
- Bayer Pattern: RGGB
- Shutter:Rolling shutter
- Exposure Range: 32µs-2000s
- ROI: Supported
- Read Noise: 1.2-7.3e
- QE peak: TBD
- Full well: 63.7ke
- ADC:14bit
- DDRIII Buffer: 256MB
- Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480 X 320)
- Interface: USB3.0/USB2.0

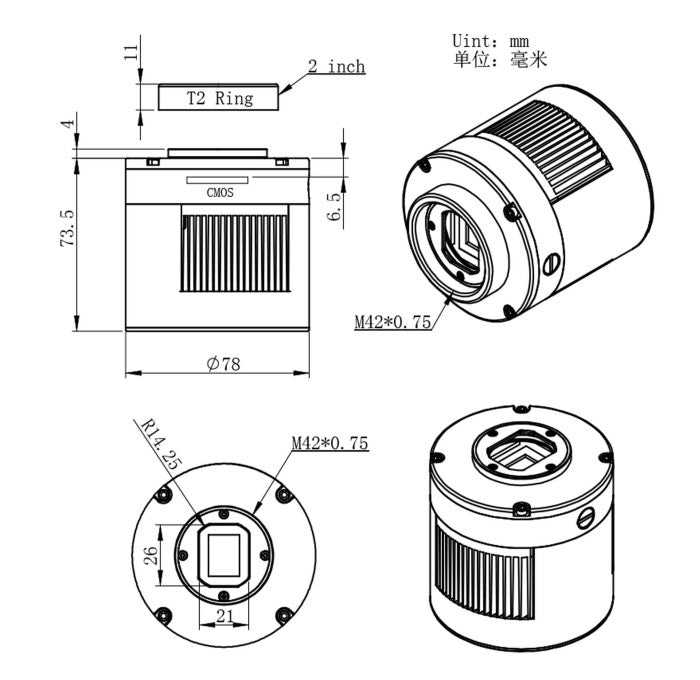

- Adaptor: M42X0.75
- Protect window: AR
- Dimensions: 78mm Diameter
- Weight: 410g
- Back Focus Distance: 6.5mm
- Cooling: Regulated Two Stage TEC
- Delta T: 35°C-40°C below ambient
- Camera Power consumption: 650mA at 5V
- Cooler Power consumption: 12V at 3A Max
- Working Temperature: -5°C - 45°C
- Storage Temperature: -20°C - 60°C
- Working Relative Humidity: 20% - 80%
- Storage Relative Humidity: 20% - 95%
- Max FPS at full resolution:
- (10Bit ADC)
- 4144 × 2822 19fps
- (14bit ADC)
- 4144 × 2822 16fps
- 4144 × 2822 16.3fps
- 4096 × 2160 21.1fps
- 3840 × 2160 21.1fps
- 1920 × 1080 40.9fps
- 1280 × 720 59.7fps
- 640 × 480 85.9fps
- 320 × 240 153.4fps
- 4144 × 2822 19.0fps
- 4096 × 2160 24.7fps
- 3840 × 2160 24.7fps
- 1920 × 1080 47.9fps
- 1280 × 720 69.8fps
- 640 × 480 100.5fps
- 320 × 240 179.3fps
Download the ASI 294MC-P Manual here
Download the latest Camera Driver from ZWO here
