ASI120MM-S

Regular price€281,95
/
(Including VAT)
ZWO ASI120MM-S is a high speed Mono Camera with high sensitivity, with up to 60 fps at maximum resolution, its especially suitable for imaging moon and planets, but it can also be used for deep-sky.

Lower resolutions result in significantly higher frame rates, appropriate for "lucky imaging". VGA (640x480 pixels) offers 133 fps, the maximum rate of 254 fps can be achieved at 320x240 pixels.

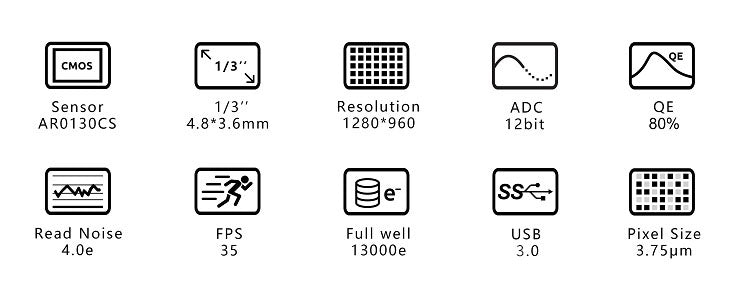

Camera Sensor:
ASI120 camera integrates AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels. The pixel size is 3.75 μm x 3.75 μm. This camera provides 12bit ADC.

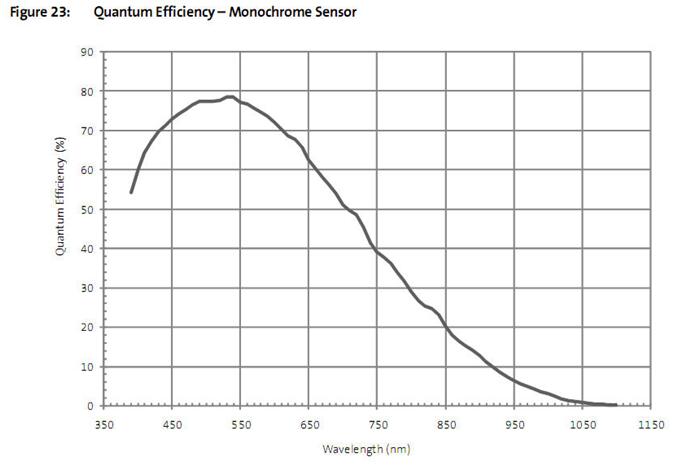

ASI 120MC-S is an extremely fast and sensitive USB3.0 camera. Up to 60FPS under 1280 X 960 full resolution. With a peak QE of 75%, beyond ICX618 and with no FPN(Fixed pattern Noise) Long exposure supported up to 2000s. Fully compatible with USB 2.0 USB Host.

USB 3.0 Port & ST4 Port:
  1. USB 3.0 Port: Can provide 5Gb bandwidth to let ASI120S run at 60 fps (10bit, high speed mode) at full resolution(1.2MP).
  2. ST4 Port: Can be used connect with auto guide port of mount, for guiding.
Camera Spec:
  • Sensor: 1/3″ CMOS AR0130CS(Mono)
  • Resolution: 1.2Mega Pixels 1280×960
  • Pixel Size: 3.75µm
  • Exposure Range: 64µs-2000s
  • ROI: Supported
  • Non-volatile memory/On camera storage: Build-in total 192K byte
  • User accessible space(image size up to 480X320)
  • ST4 Port - Suitable for use as an Autoguiding Camera
  • Interface: USB3.0/USB2.0
  • Bit rate: 12bit output
  • Adaptor: 2″ / 1.25″ / M42X0.75

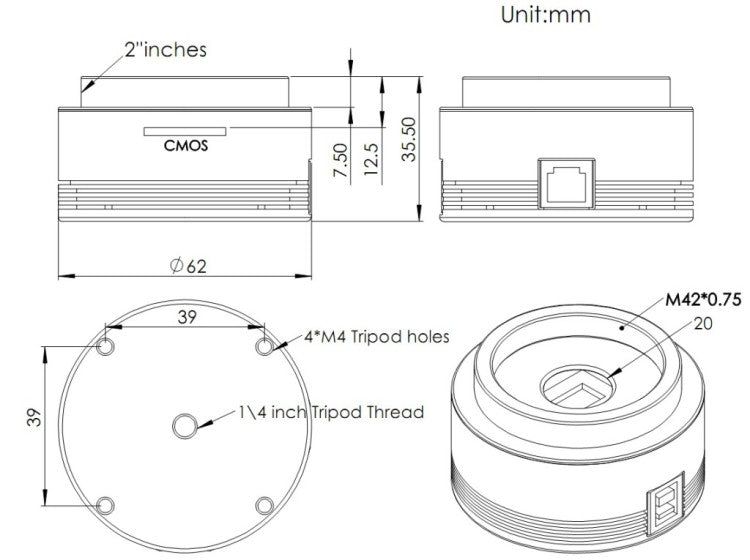

  • Dimension: φ62mm X 28mm
  • Weight: 100g
  • Working Temperature: -5°C - 45°C
  • Storage Temperature: -20°C - 60°C
  • Working Relative Humidity: 20% - 80%
  • Storage Relative Humidity: 20% - 95%

Supported resolutions: (At Binning 1×1)

  • 1280 X 960 @60FPS
  • 1280 X 720 @98FPS
  • 1280 X 600 @116FPS
  • 1280 X 400 @168FPS
  • 960 X 960 @74FPS
  • 1024 X 768 @90FPS
  • 1024 X 400 @160FPS
  • 800 X 800 @85FPS
  • 800 X 640 @106FPS
  • 800 X 480 @141FPS
  • 640 X 480 @133FPS
  • 512 X 440 @145FPS
  • 512 X 400 @158FPS
  • 480 X 320 @196FPS
  • 320 X 240 @254FPS

Supported resolutions: (At Binning 2×2)

  • 640 X 480 @45FPS

Download the ASI 120MC/MM Manual here

Download the latest Camera Driver from ZWO here
