Pegasus Astro Ultimate Powerbox - Gen 3

The Ultimate Powerbox V3 (UPBv3) is the pinnacle of power and convenience in one sleek package! If you’re weary of the complexities of multiple power packs and tangled cables, the Ultimate Powerbox v3 is the solution you’ve been seeking.

The concept revolves around a compact enclosure that delivers ample amperage power and USB data while maintaining impeccable cable organization. Power up your mount, cameras, filter wheel, and all your essential astronomy equipment, thanks to its versatile multiport design. With the Ultimate Powerbox V3, you can fully control your astronomy gear from one source.

Features:

• Up to 12V / 20Amps of provided electric current (240W).

• 6 x 12V smart and individual switcable outputs. Each output can be configured as constant 12V or pulse width modulated driven).

• Wi-Fi (2.4GHz) or USB Operation.

• 2 x 12V / Always ON Outputs.

• 3 x Dew Heaters Outputs. (Automatic Adjustable with AutoDew feature)

• 1 x Adjustable Power Output 3-12V -Regulated Output of 3Amps

• 1 x Adjustable Power Output 12-24V – Regulated Output of 4 Amps

• 1 x Power Relay switch 250V/10A

• 6 x USB3.1 (backwards compatible with USB2) and 2 x USB2 available ports (8 USB ports in total). Individually controlled via software.

• Stepper Motor Controller (Silent and low vibrating stepper controller. Can drive nearly any stepper motor in the astro -market up to 2Amps per coil).

• External Wi-Fi Antenna

• Built-in ambient temperature and humidity sensor. Can also accept external sensor and auto-prefer external sensor.

• Power readings (Input Voltage, Current, Current per port).

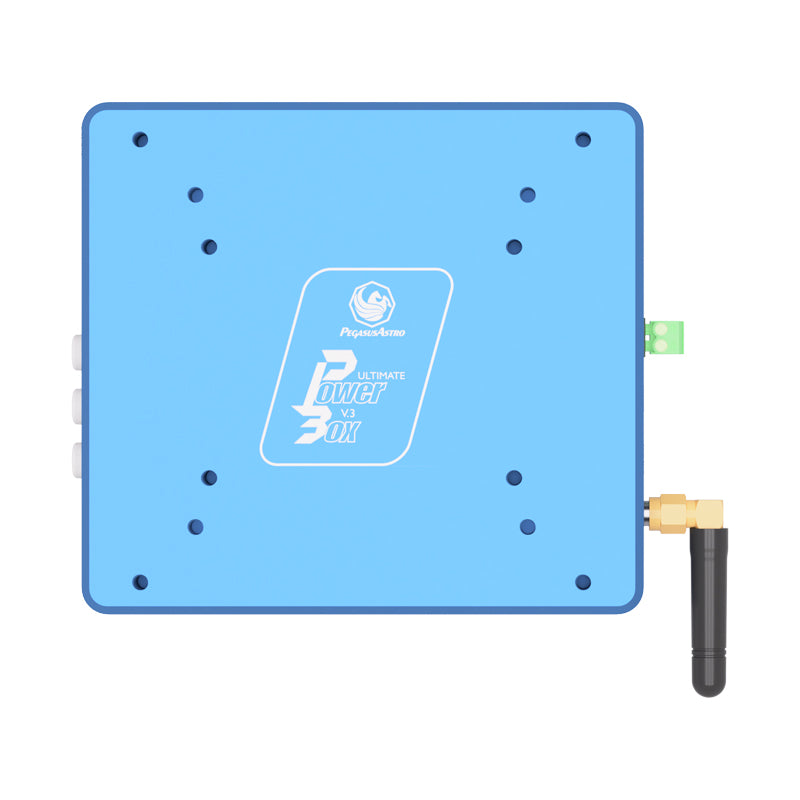

• VESA compatible size enclosure.

A USB 3.1 Hub controller guarantees seamless functionality for this USB hub across a wide temperature range, spanning from -40°C to +80°C.

One notable attribute of this hub is its capacity to enable individual ON/OFF control for each USB port via the software. This feature proves particularly useful in situations where a device becomes unresponsive and necessitates reconnection during inclement conditions, such as during a cold night.

To address such scenarios, you can conveniently identify the problematic port and initiate a recycling process through the ON/OFF switch within the software interface. This streamlined solution ensures optimal user experience and ease of operation - Perfect for remote observatories too.

Unrivaled Power:

Each USB port on the UPBv3 delivers up to 2.5 Amperes of power, ensuring your devices are charged and ready to go in no time.

Total Protection:

Rest easy knowing that your valuable devices are safeguarded. The UPBv3 features electronic short circuit protection, additional Electrostatic Discharge (ESD) protection, and overload electronic protections for all USB ports. Your devices are in safe hands.

Built-in Power Sensors:

The UPBv3 is equipped with a highly accurate voltmeter and ammeter capable of measuring currents up to 20A. These instruments provide real-time monitoring of your power input, ensuring you have full visibility into your device’s power consumption.

Automatic Overvoltage Protection: To safeguard your valuable equipment, the UPBv3 is designed with an automatic overvoltage protection mechanism. If the input voltage exceeds 14.5V, the system responds swiftly by instantly cutting off power, providing a robust shield against potential damage.

Additional Power Outputs and Sensors:

Always-ON 12V Outputs: The UPBv3 features 2 dedicated Always-ON 12V outputs, augmenting the total 12V outputs to an impressive 10. When combined with the 2 adjustable outputs, configured to 12V, you can harness a grand total of 10 outlets, providing unparalleled power distribution.

Adjustable Voltage Step Down Output: Offering precise control, the UPBv3 boasts 1 adjustable voltage step-down output, adaptable within the range of 3V to 12V and delivering up to 3 Amps of power.

Adjustable Voltage Step Up Output: Equipped with 1 adjustable voltage step-up output, this feature allows seamless regulation from 12V to 24V, with a formidable power output of up to 4 Amps.

Switch Relay: The UPBv3 is equipped with a robust switch relay, providing the capability to effortlessly control and manage third-party equipment with ease.

Environmental Sensor: Integrated within the device is an ambient temperature and relative humidity sensor. This sensor continuously monitors environmental conditions, providing real-time insights and automatically adjusting the heat intensity of your Dew strips for optimal performance.

Note: We understand that many manufacturers have their unique pinout configuration for certain mounts, such as Skywatcher, Celestron and Vixen to name a few. There are also special power cables available specifically for many of these mounts so you can power it directly from the controller - Please contact us if you require one of these.

ASCOM Alpaca Native Support:

ASCOM Alpaca outshines classic ASCOM drivers with its platform independence, modern web standards, streamlined installation, remote control capabilities, extensibility, and open-source options. This ensures superior compatibility and user-friendly performance, making it the preferred choice for advanced astronomy applications.

The Ultimate Powerbox v3 comes equipped with an integrated web server that seamlessly communicates with Alpaca clients natively. This integration enhances the user experience by providing easy access to telescope focus control through ASCOM Alpaca but also monitoring from any device with a web browser such as a smart phone.

Instant Access from any (mobile) device (web browser):

Upon connecting to the Ultimate Powerbox v3 hotspot, the device control is automatically spawned for immediate use. Furthermore, you can conveniently access it from any web browser by simply typing “upbv3.local” in the address bar.

This feature is operating system-independent and functions seamlessly alongside USB control and the EZY hand controller plug-in, providing flexibility and convenience for users across various setups.

Spec:

• Supply Voltage: 12V-14V DC (Reverse Polarity Protected)

• Power Input Connector: XT60 Female

• Connectivity: USB3 – Type B USB Connector

• 6 x 12V Outputs: Maximum Current 6.0A each. 2.1mm Center Positive - Sense/ Ammeter in each port.
  3 Channel x 12V PWM Outputs: Maximum Current 3A each, RCA Connector, Pulse Width Modulated [3KHz] (Suitable for Dew Heaters / Fans / Flatpanel), software controlled Duty Cycle % / OFF

• 2 x Variable Outputs: Adjustable via software. 3-12V / 3Amps & adjustable via software. 12-24V / 4Amps

• 2 x Always ON 12V Output: 12V passthrough / Always ON / 8 Amps

• Stock Sensor Input / EXT: 0-100% humidity readings with 2-5% accuracy, -40 to 80°C temperature readings ±0.5°C accuracy.

• Ammeter: Measures 0 – 20A

• Voltmeter: Measures 5 – 15V

• Superspeed (USB3.1) 8 port powered Hub: Industrial Grade: Temperature range -40°C to +80°C, 6 x
• SuperSpeed (USB3.2) ports (backwards compatible with USB2), 2 x High Speed (USB2) ports, USB Ports can be switched ON/OFF on demand via software (data + power). Each USB port can deliver up to 2.2Amps

• Stepper Motor Controller: Unipolar and Bipolar Stepper motors (2.0 Amps per phase) – RJ45 socket

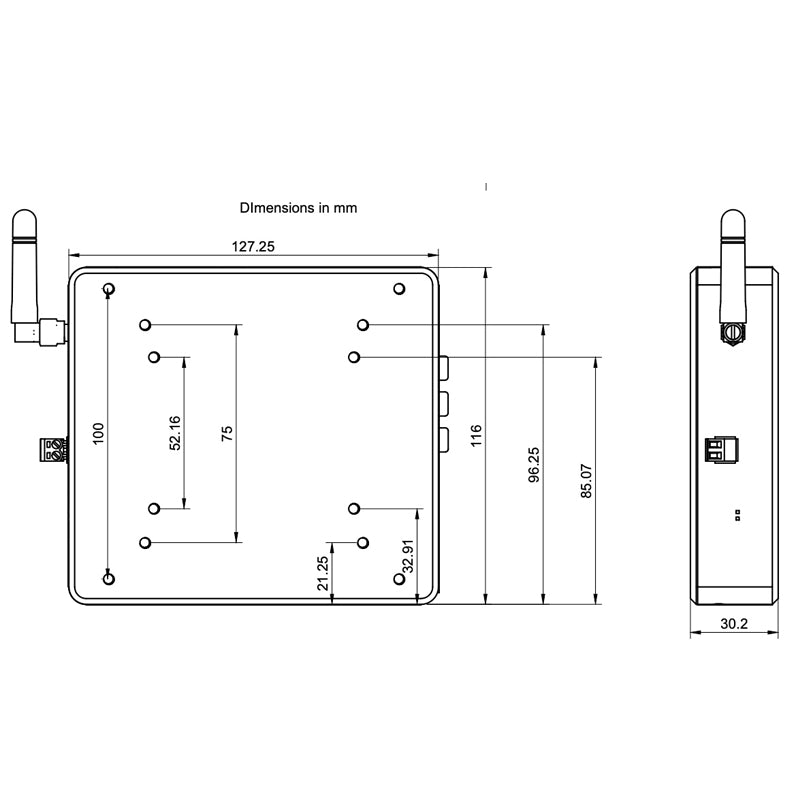

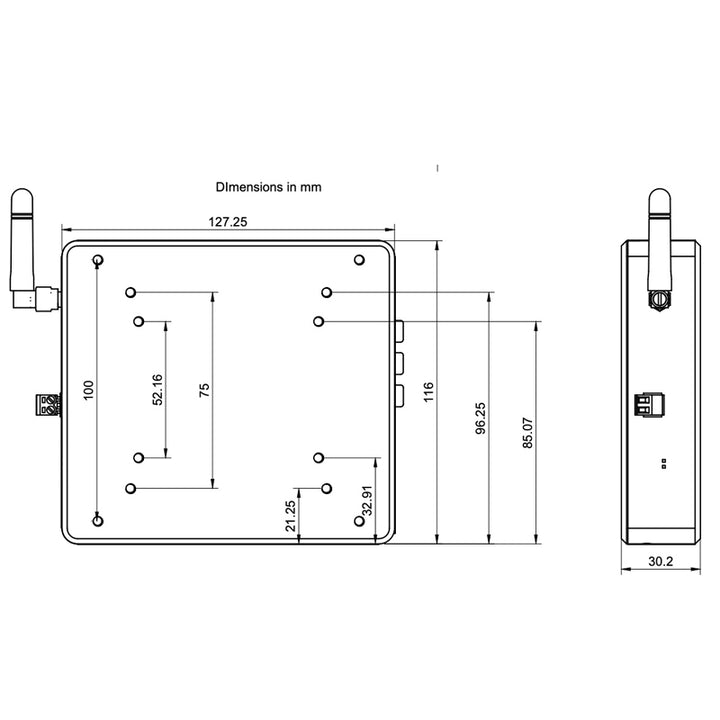

• Dimensions: 127.3mm x 116mm x 30mm

• Weight: 400 grams

Whats included:

1. Ultimate Powerbox V3

2. 4 Power DC 2.2 to 2.1 male cables

3. 1 USB Cable Type B (1.8m)

4. Mounting Screws

Software can be downloaded directly from Pegasus Astro here
